Vertical Packing Machine Weiwang Pack Vffs - China

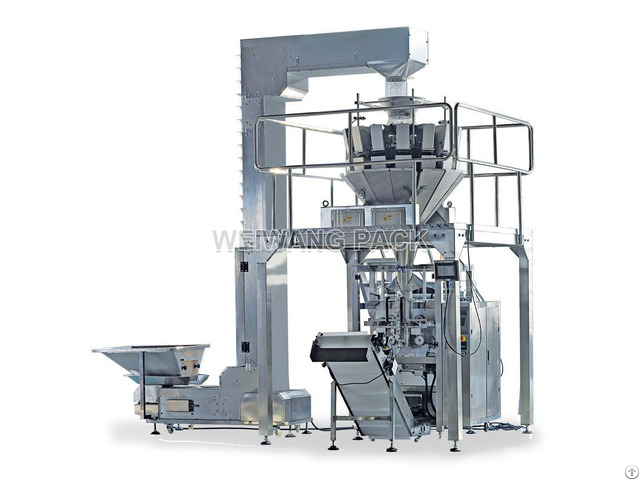

Automatic weighing packing machine line WW-320W/420W/520W/720W/10 50W/1200W

Application: Suitable for a variety of metering equipment, packaging a variety of products; Such as: puffed food, shrimp roll, ice, frozen food, potato chips, peanuts, popcorn, corn flour, seeds, sugar and so on.

Automatic Weighing Packing Machine WEIWANG PACK Multihead Weigher (1/2/4/10/14/16/20/24head s) Automatical Z-type bucket elevator Supported Platforms Finished product conveyor Weight inspection procedure Metal detector Rotary table Automatic conveying and weighing products and forming a film sealing bag.

Automatic weighing - filling - sealing type, easy to use.

Use famous brand electric and pneumatic components, stable and long life circle.

Combination scale improves packing speed and precision

Auto correcting the excursion of the film, easy to install film PLC system, easy for parameters adjusting Touch screen with multiple language

According to customer requirements, customized packaging ice, ice roller, ice, frozen food.

Type WW-320 WW-420 WW-520 WW-720 WW-1050 WW-1200

Packing speed 10-80 bag/min 10-70 bag/min 5-60bag/min 5-60bag/min 5-40bag/min 5-30bag/min

Bag Length 50-200mm 50-300mm(L) 80-370mm(L) 80-470mm(L) 100-570mm(L) 100-800mm(L)

Bag width 40-150mm 50-200mm(W) 80-250mm(W) 100-350mm(W) 180-450mm(W) 200-580mm(W)

The max.

roll film width 320mm 420mm 520mm 720mm 1050mm 1200mm

Air consumption 0.65mpa 0.65mpa 1.0mpa 1.0Mps 1.0Mpa 1.0Mpa

Air consumption 0.25m3/min 0.3m3/min 0.4m3/min 0.4m3/min 0.5m3/min 0.5m3/min

Power 220V 50/60HZ 2Kw 220V 50/60HZ 2.2Kw 220V 50/60HZ 2.7Kw 220V 50/60HZ 3Kw 220V 50/60HZ 6kw 220V 50/60HZ 6kw

Overall size(L×W×H)

mm 1200×700×1520 1080×1300×1400 1650×1170×1700 1700×1270×1900 1750×1510×2100 2400×1800×(H) 2750

Weight 400KG 600Kg 800Kg 900Kg 1000Kg 1200Kg

Company Contact:

• Posted By: Foshan Weiwang Packaging Machinery Co., ltd

• Phone: 13925975346

• Address: Nanhai District, Foshan City, Guangdong Province, China, Foshan , Guangdong , China

• Email:

• Business Description: FOSHAN WEIWANG PACKAGING MACHINERY CO., LTD is one of the fastest growing packing machinery manufacturers in Guangdong, China.

  WEIWANG is specialized in researching, designing, manufacturing and marketing packaging machines which are widely used in different fields such as foods, chemicals, pharmacies, beverage, light industry and etc.

  - Vertical packing machine (VFFS)

  - Flow packing machine (HFFS)

  - Premade bag packing machine(doypack)

  - Box packing machine

  - Clay exturding and packing machine

  WEIWANG has a modern workshop, a professional R&D team and advanced manufacturing equipment to make your needs meet in the shortest time.

  WEIWANG series of packaging machines are sold to more than 40 different countries and regions in Europe, America, Mid-East, South Asia and etc.

  With high quality machines and quick professional service, WEIWANG win a consistently high reputation.

  You are warmly welcomed to contact us.

  WEIWANG, WIN-WIN!

  Mission: To supply high quality packing machines to all customers.
