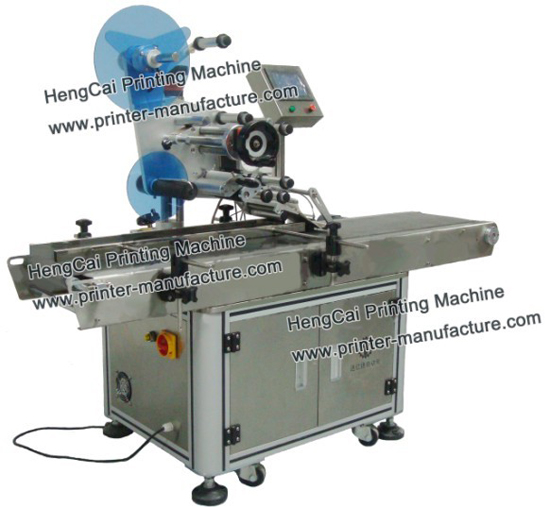

Mini Automatic Top Labeling Machine - China

Mini Automatic Top Labeling Machine is Smaller version of HCT- 11300

Full Automatic Flat Labeler .

It has the most economical and efficient in terms of capacity .

The aluminum and stainless steel design makes it portable and durable.

The user friendly operating system and microprocessor control has many added features that can boost production efficiency, wide application range up to max Labeling speed: 120pcs / min.

ECT- 11300 is the smart choice for the small production runs when efficiency and equipment cost is the major consideration.

ECT- 11300 series labelers are the best helping hands available.

Features

1 - Adopt mature technology PLC control system, operation is stable and high- speed

2 - Using touch- screen control operating system, simple, practical, efficient;

3 - Adapt variety shape of object in top labeling;

4 - Screw adjustment to suppress body movements accurately;

5 - Synchronization chain mechanism ensure labeling smooth and precise calibration;

6 - Advanced technology of pneumatic code system, print batch number and expiry clearly.

7 - Transmission- type rolling bottles, make sure the labels attached more firmly;

8 - Labeling transparent label without bubble and wrinkle;

Specification

1 - Label width: 20- 150mm

2 - Label length: 6- 250mm

3 - Products Diameter:

Length: 40mm- 350mm

Width: 40mm- 180mm

Height: 0.2mm- 130mm

4 - Max Outside diameter of label roll: φ 280mm

5 - Inside diameter of label roll: φ 76mm

6 - Max Labeling speed: 150pcs / min

7 - Accuracy of labeling: ±0.5mm

8 - Power: 220V/ 110V 50/ 60Hz 800W
