Huatao Corrugator Belt - China

Huatao Group - Corrugator Belt & Spare Parts

www(dot)htwirebelt.

com maple(at)huataogroup.

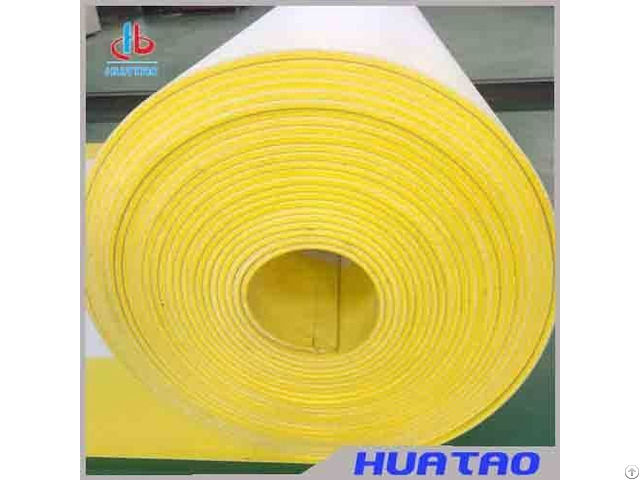

com Tel: 0086 133 8311 0583 WhatsApp: 0086 133 8311 0583 Corrugator belts Inwoven Aramid Edge is a consistent development based on the proven woven high speed corrugator belt range.

Also is ideal for corrugating systems with high production speed, even load systems and frequently changing paper widths.

Corrugator belts Inwoven Aramid Edge -Features

Suitable as top belt with high speed (above 150 m/min) production

Heat and super tear resistance

Inwoven Aramid edge to reinforce the belts, reduce wear substantially and ensure a long lifetime.

Particularly for frequent changes of board width

Mostly used for all Corrugating Production Lines.

Corrugator belts Inwoven Aramid Edge- Specification

Product Corrugator Belt Inwoven Aramid Edge

Thickness 8mm-10mm

Width range 1000mm - 3200mm

Length 80 meters

Heat-resistance 240℃ (the kevlar edge upto 350℃)

Tensile strength 70Mpa

Coefficient of friction ≥ 0.40µ

Weight per unit (7.5±0.3)kg/㎡

Air-permeability 40mm water Column 2.0m³/㎡ min

Seam Hot JAW lacing/Clipper with rubber coated

Edge 100mm or 200mm inwoven aramid edge reinforcement (kevlar)

Suitable position Top belt

Lifetime 50-70 million meter

Used on all corrugators high tearing resistance

Long life time running High abrasion resistance

Moisture absorption Heat resistance Low noise Corrugator Belts with Silicone Coating Technical Parameters Product High Speed Corrugator Belt

Thickness 9mm

Width range 1400mm - 3200mm

Heat-resistance 240ºC (the kevlar edge upto 350ºC)

Weight per unit (7.5±0.3)kg/m2

Air-permeability 40mm water Column 2.0m³/m2/min

Company Contact:

• Posted By: Shijiazhuang Huatao Import and Export Co., Ltd

• Phone: 031180690567

• Address: Zhonghua North Street, Shijiazhuang , Hebei , China

• Email:

• Website: https://www.htwirebelt.com

• Business Description: Huatao Group - Corrugator Belt & Spare Parts, mainly specializes in corrugator equipment, corrugator spare parts, packing equipment, etc.

  our main products include Mill Roll Stand, Single Facer, Slitter Machine, Stacker, corrugator belt, corrugating roll, knives and grinding wheels, etc.

  Our Products:

  - Corrugator Belt

  - Corrugating Roll

  - Spray Humidifier

  - Roll Stand

  - Cassette Single Facer For Corrugated Cardboard Production
