Htm 3z 5l Industrial Hand Towel Folding Machine - China

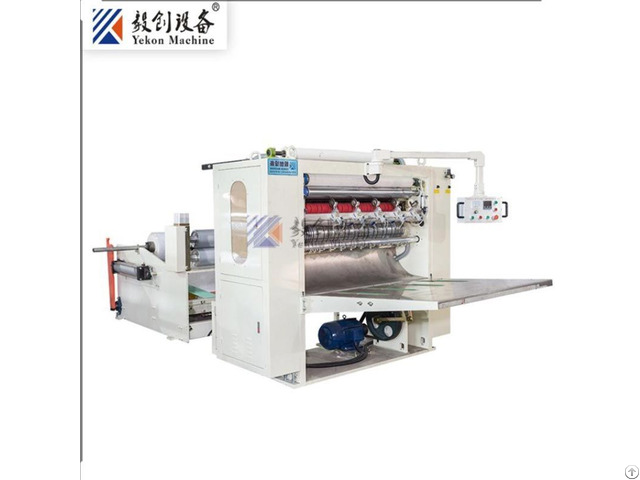

HTM-3Z-5L Industrial Hand Towel Folding Machine

Folding Unit:

1 - Size of folding roller: 1250mm (width)

2 - Applicable roll quantity: 35~45 GSM(1ply)or 16~25GSM(2ply) towel

3 - Finished product open size: 210±2mm x(150~250)

4 - Sheet Foldedd size: 70±2mm x(150~250)

5 - Folding type: N fold

6 - Speed of folding: 500~700sheet/min/line

7 - Cross cut: 1 sheet high speed steel top blade, 3 sheets high speed steel underside blade

8 - Circular blade: 1 blade.

underside cylinder is bearing steel

Automatic Soft Facial Tissue packing Machine Embossing Unit

1 - Two chromium plated steel roller, air pressure.

2 - With curve roller.

Unwind stand Unit:

1 - MaxWidth of paper: 1200mm

2 - Max diameter of parent paper: 1200mm

3 - Core inside diameter: 76.2mm

4 - Unwind reelstand for one reel.

5 - Web tension controlled: manually

6 - Parent roll axes regulation: manually

Transmission:

1 - By gear and simultaneous belt

Embossing paper Folding Machine Control Unit:

1 - Speed adjusted: is by inverter (7.5KW)

2 - Counting system: counter adjusted.

3 - Jogging button and emergency button installed on machine

Vacuum System:

1 - 1set LONGTECH roots vacuum pump of 22KW(TAIWAN)

Compressed Air:

1．Air pressure: > 4kg/cm2 (provided by buyer)

Company Contact:

• Posted By: yekonmachine

• Phone: +8675781816199

• Address: YINSHI ROAD, NORTH SECTION, foshan , guangdong , China

• Email:

• Website: https://www.yekonmachine.com/

• Business Description: FOSHAN NANHAI YEKON TISSUE PAPER MACHINERY CO., LTD was established in Jan, 2009 - Before it, we were foshan Nanhai Keyo Machinery Co., Ltd. After developing for years, now we owns 10,000 square meters modern standard factory, more than 100 staffs, and 20 million capital.

  Now we are the one of the biggest factories in the tissue converting machine industrial in China Mainland.

  Yekon Company is located in Shishan Technological Industrial Zone which is well-developed in economy and industry and there are perfect supporting facilities in the zone.

  Our workshop is built by the requirements of the urban planning law, environment protection act and safety protection act.

  It should be the high quality and modern factory.

  We have our own R&D department, most technicians graduated from technical university.

  the R&D team support us upgrading our product and developing new products which are more simple and easy for controlling.

  Our main products are Facial tissue and Hand towel tissue converting machine and we also have excellent experience to help customer to build the tissue production line.

  During 20 years, Yekon has supported overseas customers to install the tissue production line in more than 20 countries.
