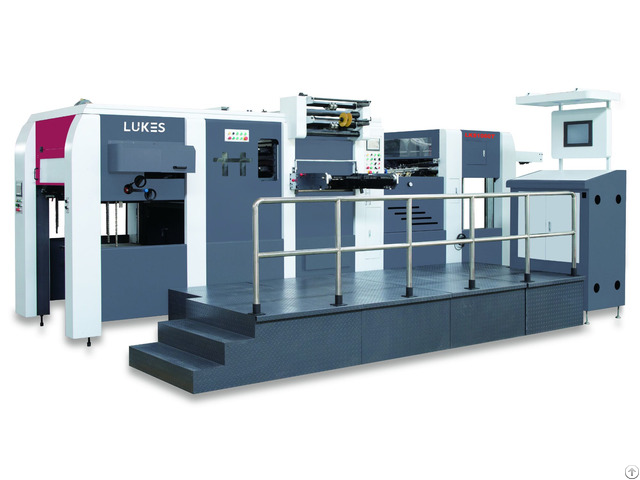

Hot Foil Stamping And Die Cutting Machine - China
price: contact company for price
the machine is high end model, aggravating machine, bronzing deep embossing and die cutting characterized by pressure large parts size, the machine itself, the weight of the body long life Model LKS800T LKS1080T LKS1060T
Max.
sheet size 810x610mm 1080x780mm 1070x770mm
Min.
sheet size 320x230mm 400x370mm 380x240mm
Max.
die cutting size 790x590mm 1040x750mm 1040x750mm
Max.
working speed 6000 s/h 5500s/h 6000s/h
Electrical power 48kw 58kw 70KW
Paper range Corrugated≤4mm Cardboard100-2000g Max.
working pressure 250T 320T 600T
Machine weight 12.5T 18T 25T
Heating zone number 12 12 12
No of foil rollers 3 longitudinal
2 transversal
Vertical: Max.
foil width 750mm 1030mm 1030
Min, foil width 25mm 25mm 25mm
Max.
length of pull foil 600mm 760mm 760mm
Max.
pull foil roll diameter φ200mm φ200mm φ200mm
Horizontal: Max.
foil width 540mm 740mm 740mm
Min foil width 25mm 25mm 25mm
Max.
length of pull foil 800mm 1060mm 1060mm
Min .
pull foil roll diameter φ220mm φ230mm φ230mm
Machine dimension B 6400x3830x2200mm 7600x4050x2500mm 7700x4300mmx2500mm
Company Contact:
- Posted By: Shandong Lukes Machinery CO.,LTD
- Phone: 13793691355
- Address: No 2207 Lechuan street, Weifang , Shandong , China
- Email:
- Website: https://www.sdlukes.com
Published date: August 7, 2019
- Business Description: Lukes machinery is a leading manufacturer and supplier for design , manufacturer , sale and service of flat bed die cutting machine and folder gluer machine as well as corrugated converting equipment such as flexo printing machine with case marker/ flute laminating machine /stitching machine and handle stripping machine /creasing matrix etc
