Hc270 270ton 2700kn Clamping Force General Purpose Plastic Injection Molding Machine - China

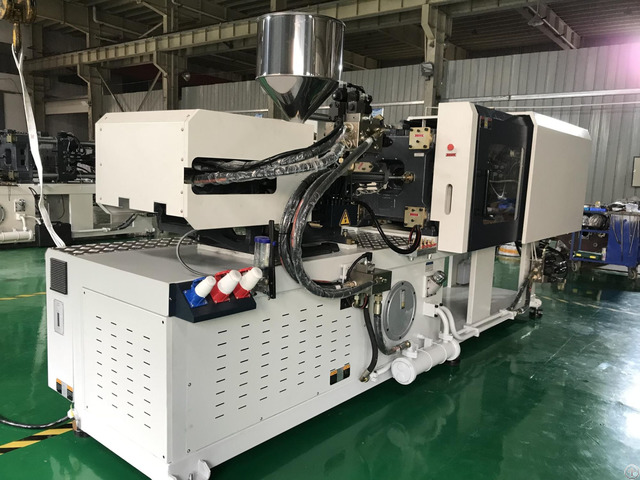

HC270 270Ton 2700KN Clamping Force General Purpose Plastic Injection Molding Machine

General Purpose Plastic Injection Molding Machine

HC Series General Purpose Plastic Injection Machine

high precision injection molding machines Specifications Unit HC270

INJECTION UNIT A B C

Screw diameter mm 55 60 65

Screw L/D ratio L/D 22.9 20.9 19.3

Theoretical shot volume cm3 594 707 829

Shot weight(PS) g 541 643 754

Injection rate cm3/s 213.4 254 298

Injection pressure Mpa 200 168 143

Max.

screw speed rpm 160

CLAMPING UNIT Clamping force kN 2700

Opening stroke mm 550

Distance between tie-bars mm 580 x 580

Max.

mold height mm 530

Min.

mold height mm 200

Ejector stroke mm 150

Ejector force kN 62

OTHERS Drive power kW 22

Heating capacity kW 16

Machine dimensions m 6 x 1.5 x 2.2

Machine weight t 8.3

Oil tank capacity L 365

CLAMPING PART:

We creates independently the box type high rigidity mold structure for the clamping part; the clamping support guide rail adopts the high rigidity design to reduce the deformation effectively; the toggle structure optimized and designed with computer achieves exceptionally stable and rapid clamping; and the enlarged mold thickness, the gear mold regulation unit and the internally installed mechanical safety lock as well as the 180-degree rotary product blanking bucket, all help achieve your individual demands and make your operation easier!

Box-type mold platen design, strong and durable.

High quality copper bushes on tie bars guiding parts, working life long.

Push platen adopts the self-lubrication copper bushes, long life, high speed & precision.

Thicken central of platen, effective for mold and machine life and product precision.

Enhanced strength for fixed platen, improve products stability and quality.

Special designed machine base, clamping unit supported by the base girder, ensure machine base perfect balance, and few deformation after long time working.

Full supported injection base, avoid it up and down during high pressure injection.

High quality SKD61 screw tip, check ring and thrust ring, 38CrMoAl screw and barrel.

Self-lubrication bushes ensure high repeatability precision and long life.

Centralized lubrication for injection unit, easy for feeding lubrication grease.

Chimney exhaust designed nozzle purge guard, suitable for clean-plant production.

Barrel PID controls the difference of temperature less error.
