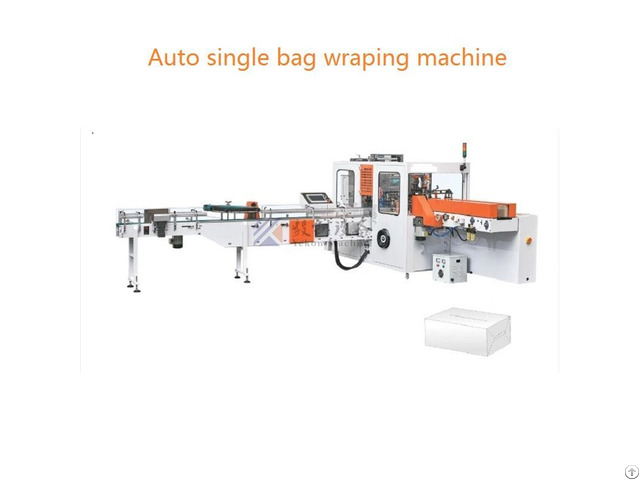

Full automatic single bag packaging machine

Technical parameter and features: Features Description Remark

Paper sorting mode Automatic Smart Feeding 4 sectional intelligent soft type paper feeding mode

Paper sorting mode 105packs/min Relate to paper specification

auto single bag packaging machine Stable production speed ≤100 packs/min Relate to paper specification

Packaging film changing ≤2min Relate to experience and skill

Paper length 95mm-210mm Size of finished product, can be customize if size exceed.

Paper height 40-100mm Paper width 90mm-115mm Mould 3 sets Standard configuration, sizes are provide by buyer.

Machine dimension Length 4650 mm Width 3650 mm Height1800 mm Machine weight ≤ 3500 KG Packaging material PE, BOPP, CPP etc Film thickness 0.035mm-0.05mm Max.

film roll diameter 500mm Film core diameter 76mm According to international standard

Max.

film width 340mm Compressed air Pressure air≥ 0.5MPA Buyer prepare

Power supply 380V/50HZ Can be customize

Total power consumption 6 KW Adaptive voltage change +/-10% According to international standard

I/O input 24VDC I/O output 24VDC tissue paper packing machine movement mode Three servo shafts positioning control Electric cam movement curve

Main transmission mode Mechanism cam + electrical cam transmission Machine color and craft Grey, static electric spray coating craft Packing type 3D packing Buy low price, high quality v paper folding machine, 3 ply tissue paper folding machine, you can choose our products.

Warmly welcome new and old customers to visit and patronize!

Company Contact:

• Posted By: yekonmachine

• Phone: +8675781816199

• Address: YINSHI ROAD, NORTH SECTION, foshan , guangdong , China

• Email:

• Website: https://www.yekonmachine.com/

• Business Description: FOSHAN NANHAI YEKON TISSUE PAPER MACHINERY CO., LTD was established in Jan, 2009 - Before it, we were foshan Nanhai Keyo Machinery Co., Ltd. After developing for years, now we owns 10,000 square meters modern standard factory, more than 100 staffs, and 20 million capital.

  Now we are the one of the biggest factories in the tissue converting machine industrial in China Mainland.

  Yekon Company is located in Shishan Technological Industrial Zone which is well-developed in economy and industry and there are perfect supporting facilities in the zone.

  Our workshop is built by the requirements of the urban planning law, environment protection act and safety protection act.

  It should be the high quality and modern factory.

  We have our own R&D department, most technicians graduated from technical university.

  the R&D team support us upgrading our product and developing new products which are more simple and easy for controlling.

  Our main products are Facial tissue and Hand towel tissue converting machine and we also have excellent experience to help customer to build the tissue production line.

  During 20 years, Yekon has supported overseas customers to install the tissue production line in more than 20 countries.
