Ftm 230 11t Facial Tissue Folding Machine - China

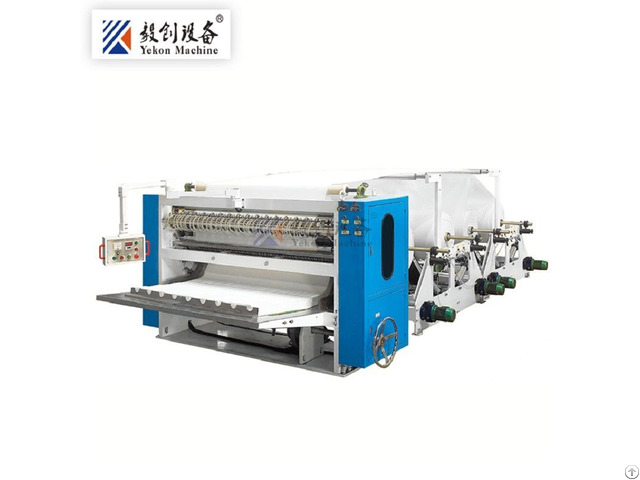

FTM-230-11T facial tissue folding machine

Equipment's technical specification

FTM-230-11T Yekon Hand Towel Folding Machine Specification

Folding Unit:

1 - Size of folding roller: 2200mm (width), material is 45# steel by coated Cr.

2 - Applicable roll quantity: 12~16GSM(2ply/3 ply)tissue paper

3 - Finished product open size: 230±2mm X(150~200)

4 - Finished product folding size: 115±2mm X(150~200)

5 - Folding type: V folding

6 - Speed of folding: 500~1000sheet / min / line

7 - Folding roller is used double air valve structure, material is hard-wearing nylon.

8 - V paper Folding Machine Transverse paper-cutting type: the upper roll cutter is 45#steel, surface is coated by hard Cr.

upper blade is 1 integral high speed- steel fixed cutter front and back.

Material is SKD-II, hardness HRC 58~60;

Underside blade are 3 integral high-speed cross cutters, hardness HRC 60~62;

9 - Circular blade: there are 2pcs blade each front and back side.

10 - Edge embossing unit: underside cylinder is bearing steel, hardness HRC 58~60, coated hard Cr.

34edge embossing each front and back side.

Material is bearing steel.

11 - Main frame is panel structure, thickness is 50mm.

Embossing Unit: 2 pairs embossing roller.

Unwind Unit:

1 - Width of parent paper: 2150mm

2 - Max diameter of parent paper: 1200mm

3 - Core inside diameter: 76.2mm

4 - 2 parent paper roll controlled with separate motor.

5 - Web tension controlled: manually

6 - Parent roll axes regulation: manually

7 - 2 unwinding shaft, include kinetic taper sleeve and locating sleeve.

8 - Panel structure, thickness is 20mm.

Transmission:

1 - Transmission are all by gear and simultaneous belt.

2 - Folding roller, cutter roller etc the brand of bearings of main parts are "HAERBIN", "WAFANGDIAN" brand.

3 - Mounted bearing is "LK" brand.

electric paper Folding Machine for sale Control Unit:

1 - Adjusted speed by inverter.

PLC controlled and touch screen are SIEMENS brand.

2 - Counting system: electric eye induction, set up by touch screen, count by the left and right dislocation

unit or ink unit.

3 - Jogging button and emergency button installed on machine

4 - Electrical control

1) Disconnector protection switch electromagnetic contactor are Schneider brand.

2) Control buttons is used Schneider.

3) Relay is used SCHNEIDER brand.

V Fold Tissue Folding Machine Vacuum control:

1 - 30KW TAIWAN Longtech vacuum pump 1set.

SIMENS motor.

Air-operated control:

1 - Air cylinder, air valve are famous brand of China.

2 - Air pressure: > 4kg/cm2 (provided by buyer)
