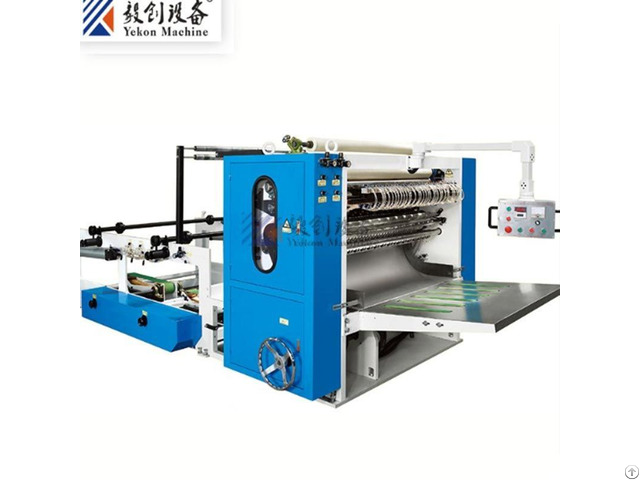

FTM-210/5T V Fold Tissue Folding Machine

Folding Unit

1 - Size of folding roller: 1100mm (width), material is chromium plated 45# steel.

2 - Applicable roll quantity: 12~16GSM(2ply/3 ply)tissue paper

3 - Finished product open size: 210±2mm X 210

4 - Finished product folding size: 105±2mm X 210

5 - Folding type: V folding

6 - Facial Tissue paper folding machine China Speed of folding: 500~1000 sheet/min/Line

7 - Folding roller is used double air valve structure, material is hard-wearing nylon.

8 - Transverse paper-cutting type: the roll of upper cutter is 45#steel, surface is coated by hard Cr.

1 sheet steel top blade front and back.

Material is SKD-II, hardness HRC 58~60;

3 sheet high speed steel underside blade, hardness HRC 60~62;

9 - Circular blade: 4 blades front and back

10 - Edge Embossing: 10pcs each front and back

11 - Main frame is panel structure, thickness is 50mm.

Embossing Unit: 8sets each front and back

auto napkin folding machine Unwind Unit:

1 - Width of paper: 1050mm

2 - Max diameter of parent paper: 1200mm

3 - Core inside diameter: 76.2mm

4 - 2 parent paper roll, pneumatic loading unit

5 - Web tension controlled: manually

6 - Parent roll axes regulation: manually

7 - 2 unwinding shaft, include kinetic taper sleeve and locating sleeve.

8 - Panel structure, thickness is 20mm.

Yekon Hand Towel paper Folding Machine for sale Transmission:

1 - Transmission are all by gear and simultaneous belt.

2 - Folding roller, cutter roller etc the brand of bearings of main parts are "HAERBIN", "WAFANGDIAN".

3 - Mounted bearing is "LK" brand.

Control Unit:

1 - Speed adjusted: Touch screen, inverter and PLC are SIMENS brand.

2 - Counting system: electric eye.

3 - Jogging button and emergency button installed on machine

electric paper Folding Machine Vacuum control:

1 - 1 set 15KW LONGTECH roots vacuum pump (TAIWAN).

Air-operated control:

1 - Air cylinder, air valve are AirTAC.

2 - Air pressure: > 4kg/cm2 (provided by buyer)
