Ftm 200 6t Facial Tissue Folding Machine - China

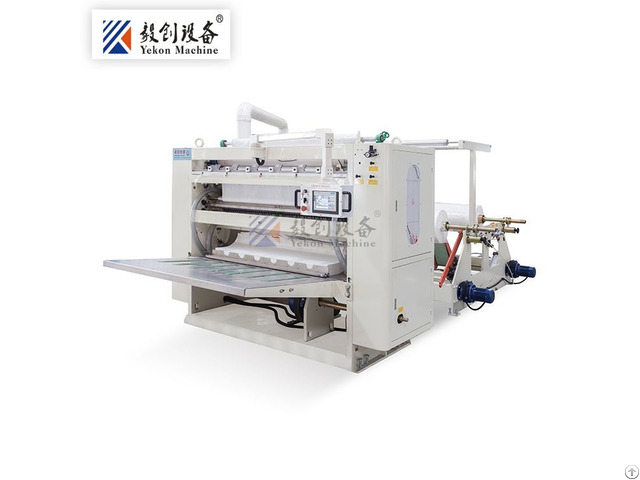

FTM-200/6T Facial Tissue Folding Machine

Folding Unit：

1 - Size of folding roller ：1350mm (width), material is 45# steel by coated Cr.

2 - Applicable roll quantity: 12~16GSM(2ply/3 ply)tissue paper

3 - Finished product open size：200±2mm X(130~220)

4 - Finished product folding size：100±2mm X(130~220)

5 - Folding type: V folding

6 - Speed of folding: 500~1000sheet/min/line


7 - Embossing paper Folding Machine for sale Folding roller is used double air valve structure, material is hard-wearing nylon.

8 - Transverse paper-cutting type: the roll of upper cutter is 45#steel, surface is coated by hard Cr.

upper blade is 1 integral high speed- steel fixed cutter front and back.

Material is SKD-II, hardness HRC 58~60;

Underside blade are 3 integral high-speed cross cutters, hardness HRC 60~62;

underside cylinder is bearing steel, hardness HRC 58~60, coated hard Cr.

9 - Circular blade：5 sets circular blade each side.

10 - Edge embossing unit: 12 pcs edge embossing each front and back.

Material is bearing steel.

11 - Hand Towel paper Folding Machine Main frame is panel structure, thickness is 50mm.

Embossing Unit：2 pairs embossing roller.

Unwind Unit：

1 - Width of parent paper：1300mm

2 - Max diameter of parent paper：1200mm

3 - Core inside diameter：76.2mm

4.2 parent paper roll, pneumatic loading unit

5 - Web tension controlled：manually

6 - Parent roll axes regulation：manually

7 - 2 unwinding shaft, include kinetic taper sleeve and locating sleeve.

8 - Panel structure, thickness is 20mm.

high volume Hand Towel folding machine Transmission：

1 - Transmission are all by gear and simultaneous belt.

2 - Folding roller, cutter roller etc the brand of bearings of main parts are “HAERBIN”, ”WAFANGDIAN”.

3 - Mounted bearing is “LK” brand.

Control Unit：

1 - Speed adjusted：Touch screen, inverter and PLC are SIMENS brand.

2 - Counting system：electric eye.

3 - Jogging button and emergency button installed on machine

Yekon napkin folding machine Vacuum control:

1 - 1 set 22KW LONGTECH roots vacuum pump (TAIWAN) .

Air-operated control:

1 - Air cylinder, air valve are AirTAC.

2 - Air pressure：> 4kg/cm2 (provided by buyer)
