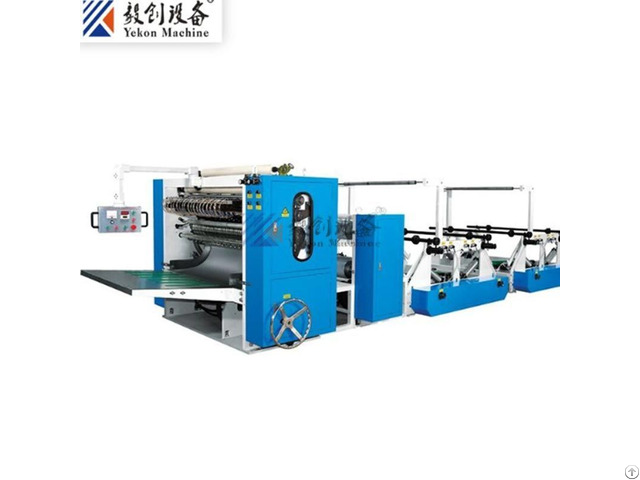

FTM-200/4T Facial Tissue Folding Machine

Folding Unit

1 - Size of folding roller: 950mm (width), material is chromium plated 45# steel .

2 - Applicable roll quantity: 12~16GSM(2ply/3 ply)tissue paper

3 - Finished product open size: 210±2mm X(130~250)

4 - Finished product folding size: 105±2mm X(130~250)

5 - Folding type: V folding

6 - Speed of folding: 500~1000 sheet/min/Line

7 - Folding roller is used double air valve structure, material is hard-wearing nylon.

8 - Facial Tissue Paper Folding Machine Transverse paper-cutting type: the roll of upper cutter is 45#steel, surface is coated by hard Cr.

upper blade is 1 integral high speed- steel fixed cutter front and back.

Material is SKD-II, hardness HRC 58~60;

Underside blade are 3 integral high-speed cross cutters, hardness HRC 60~62;

Underside cylinder is bearing steel, hardness HRC 58~60, coated hard Cr.

9 - Circular blade: 3 blade front and back

10 - V paper Folding Machine Edge embossing unit: underside cylinder is bearing steel, hardness HRC 58~60

8 edge embossing front and back, material is bearing steel.

11 - Main frame is panel structure, thickness is 50mm.

Embossing Unit:

1 - 2 pair embosing cylinder, air pressure.

Embossing paper Folding Machine Yekon Unwind Unit:

1 - Width of paper: 920mm

2 - Max diameter of parent paper: 1200

3 - Core inside diameter: 76.2

4 - 2 parent paper roll, pneumatic loading unit

5 - Parent roll axes regulation: manually

7 - 2 unwinding shaft, include kinetic taper sleeve and locating sleeve.

8 - Panel structure, thickness is 20mm.

Hand Towel paper Folding Machine price Transmission:

1 - Transmission are all by gear and simultaneous belt.

2 - Folding roller, cutter roller etc the brand of bearings of main parts are "HAERBIN", "WAFANGDIAN".

3 - Mounted bearing is "LK" brand.
