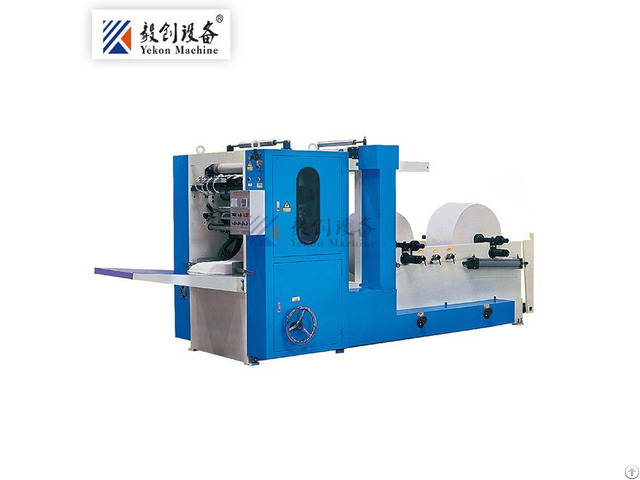

Ftm 200 3t Facial Tissue Folding Machine - China

FTM-200/3T Facial Tissue Folding Machine Folding Unit:

1 - Size of folding roller: 700mm (width), material is chromium plated 45# steel.

2 - Applicable roll quantity: 12~16GSM(2ply/3 ply)tissue paper

3 - Finished product open size: 200±2mm X(130~250)

4 - Finished product folding size: 100±2mm X(130~250)

5 - Folding type: V folding

6 - Speed of folding: 500~1000sheet/min/line


7 - 1 sheet steel top blade front and back.

Material is SKD-II, hardness HRC 58~60;

3 Full Auto Facial Tissue Packaging Machine sheet high speed steel underside blade, hardness HRC 60~62;

8 - Circular blade: 2PCS blade each front and back

9 - Edge embossing unit: underside cylinder is bearing steel, hardness HRC 58~60

10 - 4 edge embossing front and back.

Material is bearing steel.

11 - Main frame is panel structure, thickness is 40mm.

Embossing Unit: 2 pairs embossing cylinder

napkin folding machine for sale Unwind Unit:

1 - Width of parent paper: 650mm

2 - Max diameter of parent paper: 1200mm

3 - Core inside diameter: 76.2mm

4 - 2 parent paper roll, pneumatic loading unit

5 - Web tension controlled: manually

6 - Parent roll axes regulation: manually

Transmission:

1 - By gear and simultaneous belt

2 - Folding roller, cutter roller etc the brand of bearings of main parts are HRB .

3 - Mounted bearing is "LK" brand.

auto Facial Tissue paper folding machine Control Unit:

1 - Speed adjusted: by inverter(4kw)

2 - Counting system: counter adjusted

3 - Jogging button and emergency button installed on machine

Electrical control

1 - Disconnecter, protection switch electromagnetic contactor use TianZheng\ZhengTai.

2 - Control buttons use Scheider.

3 - Relay use OMRON.

4 - Proximity switch use TAIWAN brand.

5 - Antistatic unit

Vacuum control:

1 - 7.5KW volution vacuum pump 1set

Hand Towel folding machine china Compressed Air:

1 - Air cylinder is national famous brand.

2 - Air pressure: > 4kg/cm (provided by buyer)
