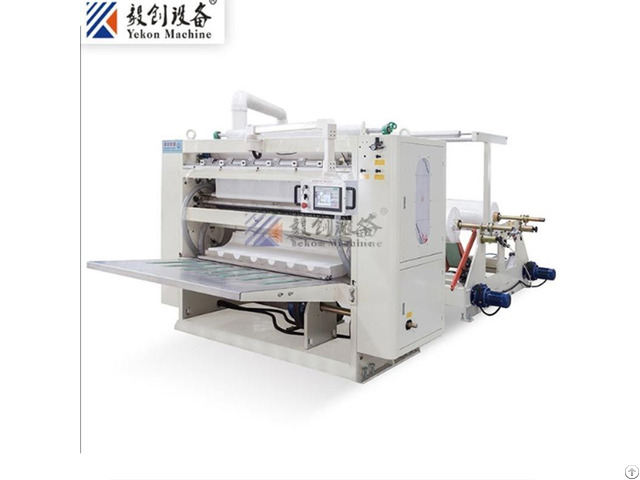

FTM-190/7T Facial Tissue Folding Machine

Folding Unit：

1．Size of folding roller ：1500mm (width)

2．Applicable roll quantity：13~25 GSM(2 ply)tissue paper

3．Finished product open size：190±2mm x(150~240)

4．Sheet Foldedd size：95±2mm x(150~240)

5．Folding type：V fold

6．Speed of folding：500~1000sheet/m in/line

7．V paper Folding Machine for sale Cross cut：2 sheet high speed steel top blade, 6 sheets high speed steel underside blade

8．Circular blade：6blades

Embossing Unit：

1． Embossing part: 2 pairs steel to steel or steel to rubber

2 - Edge-embossing part: 14 groups pneumatic steel against steel (bearing steel) at the front and back, independent adjustment.

V Fold Tissue Folding Machine Unwind Unit：

1．Width of parent paper：1450mm

2．Max diameter of parent paper：1200mm

3．Core inside diameter：76.2mm(3”)

4．2 parent paper roll, pneumatic loading unit

5．Web tension controlled：manually

6．Parent roll axes regulation：manually

Yekon Facial Tissue Paper Folding Machine Transmission：

1．By gear and simultaneous belt

Control Unit：

1．Speed adjusted：by inverter(5.5kw)

2．Counting system：counter adjusted

3．Jogging button and emergency button installed on machine

hand towel tissue folding machine China Vacuum System：

1．1 set roots vacuum pump of 18.5KW(made in Taiwan)

Compressed Air：

1．Air pressure：> 4kg/cm2 (provided by buyer)

Company Contact:

• Posted By: yekonmachine

• Phone: +8675781816199

• Address: YINSHI ROAD, NORTH SECTION, foshan , guangdong , China

• Email:

• Website: https://www.yekonmachine.com/

• Business Description: FOSHAN NANHAI YEKON TISSUE PAPER MACHINERY CO., LTD was established in Jan, 2009 - Before it, we were foshan Nanhai Keyo Machinery Co., Ltd. After developing for years, now we owns 10,000 square meters modern standard factory, more than 100 staffs, and 20 million capital.

  Now we are the one of the biggest factories in the tissue converting machine industrial in China Mainland.

  Yekon Company is located in Shishan Technological Industrial Zone which is well-developed in economy and industry and there are perfect supporting facilities in the zone.

  Our workshop is built by the requirements of the urban planning law, environment protection act and safety protection act.

  It should be the high quality and modern factory.

  We have our own R&D department, most technicians graduated from technical university.

  the R&D team support us upgrading our product and developing new products which are more simple and easy for controlling.

  Our main products are Facial tissue and Hand towel tissue converting machine and we also have excellent experience to help customer to build the tissue production line.

  During 20 years, Yekon has supported overseas customers to install the tissue production line in more than 20 countries.
