Ftm 180 2t Facial Tissue Folding Machine - China

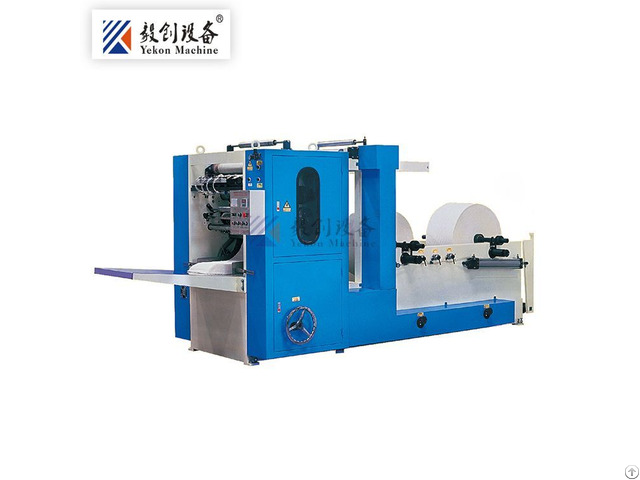

FTM-180/2T Facial Tissue Folding Machine

Folding Unit:

1 - Size of folding roller: 550mm (width), material is chromium plated 45# steel.

2 - Applicable roll quantity: 12~16GSM(2ply/3 ply)tissue paper

3 - Finished product open size: 180±2mm X(130~250)

4 - Finished product folding size: 90±2mm X(130~250)

5 - Folding type: V folding

6 - Speed of folding: 500~1000sheet/min/line


7 - napkin folding paper bag machine Folding cylinder is used double air valve structure, the material is hard-wearing NYLON.

8 - Transverse paper cutter type: the roller of top blade material is chromium plated 45# steel

1 sheet steel top blade front and back.

Material is SKD-II, hardness HRC 58~60;

3 sheet high speed steel underside blade, hardness HRC 60~62;

9 - Circular blade: one blade front and back

10 - Edge embossing unit: underside cylinder is bearing steel, hardness HRC 58~60

4 edge embossing front and back.

Material is bearing steel.

11 - Main frame is panel structure, thickness is 40mm.

Embossing Unit: 4 embossing cylinder steel against steel or steel (steel to rubber)

high volume Facial Tissue paper folding machine Unwind Unit:

1 - Width of parent paper: 520mm

2 - Max diameter of parent paper: 1200mm

3 - Core inside diameter: 76.2mm

4 - 2 parent paper roll, pneumatic loading unit

5 - Web tension controlled: manually

6 - Parent roll axes regulation: manually

7 - Two unwind roller, include kinetic taper sleeve and locating sleeve.

Transmission:

1 - By gear and simultaneous belt

2 - The brand of bearing for folding cylinder, roller of cutter etc are "Ha er bin" "Wa fang dian".

3 - The brand of mounted bearing is "LK".

Multifold Hand Towel Folding Machine Control Unit:

1 - Speed adjusted: by inverter(4kw)

2 - Counting system: counter adjusted

3 - Jogging button and emergency button installed on machine

4 - Electrical control

1) Disconnecter, protection switch electromagnetic contactor use TianZheng\ZhengTai.

2) Control buttons use Scheider.

3) Relay use OMRON.

4) Proximity switch use TAIWAN brand.

Yekon Facial Tissue Paper Folding Machine Vacuum control:

7.5KW volution vacuum pump 1set

Air cylinder:

1 - Air cylinder is famous brand.

2 - Air pressure: > 4kg/cm2 (provided by buyer)
