Electric Shaftless Mill Roll Stand For Kraft Paper - China

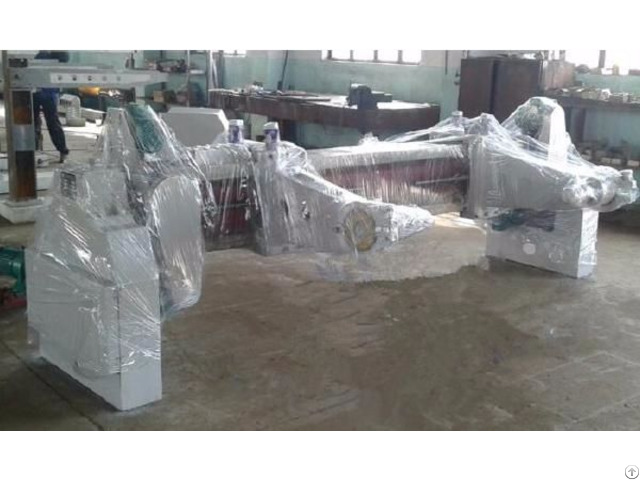

Kraft Paper Electric Shaftless Mill Roll Stand

Electronic control of paper roll to up&down, clamp and center.

The round-plate type manual brake, the base paper tension is adjusted at any time.

Arm clamp and rotary structure set fixed torque clutch, operate safety.

The structure is double rotary shaft with four arms;Support two paper mill rolls on both arms at the same time.

Non-stop paper roll change.



Technical parameter:

Control type Electric

Working width 1200-2200mm

One-side load diameter ø1400mm

Max.

load weight 2000KG

Working power requirement 380V 50HZ
