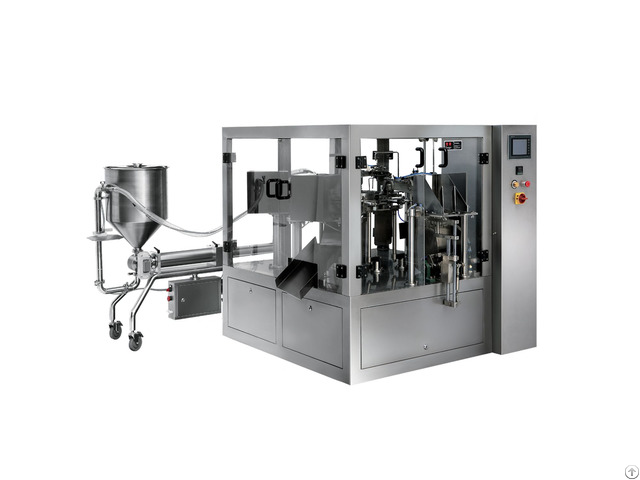

Doybag Fill Seal Machine - China

Pre-made Pouch Fill Seal Machine

Performance and features

1 - wide applications: various state and nature of liquid & thick liquid;

2 - A wide range of pouches: all kinds of pre-made pouches;

3 - Easy to operate: PLC controller, HMI system makes easy operation;

4 - Easy to adjust: change different pouches within 10 minutes;

5 - High automation: unmanned in weighing and packing process, machine alarm automatically when failure;

6 - Perfect prevention system: when the bag is not opened or not opened completely, it will be non-filling and non-sealing, so the bags can be reused and the product is not wasted thus save the production cost;

7 - The product contact parts are adopted SUS304 stainless steel to ensure sanitation and safety, meet the GMP standard;

8 - Imported engineer plastic bearings, no need to oil, no contamination;

9 - Vacuum generator: low consumption, high efficiency, cleaness, and long useful life;

10 - Waterproof design: direct water-washing the machine surface, easy to clean, prolong the useful life

11 - Pre-made bag packing: perfect sealing quality, upgrade the finished product.

Technical parameters

Equipment model RZ8-200

Equipment material 304 stainless steel

Pneumatic component SMC, AirTAC

Vacuum component Vacuum generator (SMC)

Drive mode Frequency conversion motor drive

Measuring type Liquid filler, peristaltic pump, draw-off pimp

Operation interface Touch screen(double language: Chinese and English)

Bag materials Heat sealable film as PA/PE, PET/PE, AL film etc.

Bag size W: 70~200mm L: 100~300mm (date coding requires≥140mm length)

Filling range 5~1500g

Packing speed 20~45bags/min (depended on the product and filling weight)

Package accuracy Error≤±1%

Weight 1000kg

Dimension 1675*1535*1480(L, W, H)

Total power 2.3kw

Driving power source 380V Three-phase Five-line 50HZ

Control power source DC24V

Compress air requirement ≥0.45m³/min (compress air is provided by user)
