Automatic 5 Gallon Tritan Blow Molding 20l Bpa Free Bottle Making Machine - China

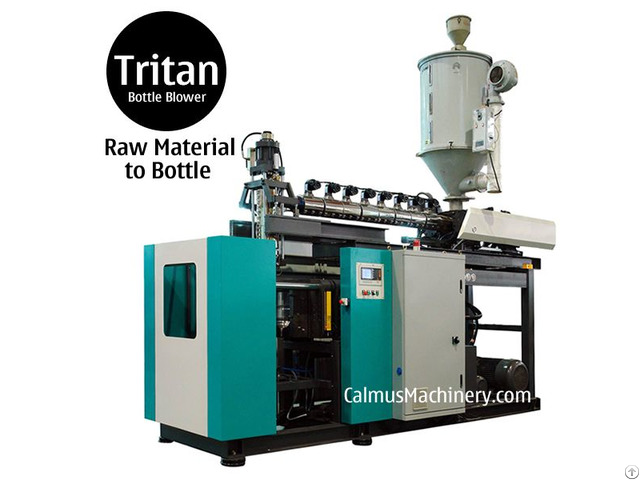

5 Gallon Tritan Bottle Blow Molding | 20L BPA-Free Bottle Making Machine Type: Raw Material to Bottle (no need of Preforms)

Feed material: Tritan Copolyester raw material (in granules)

Bottle volume: 5 or 20 litres

Production capacity: 60 pcs/hour (5 gallons) 1) Plasticizing System

Screw Diameter (mm): 85

Ratio of Screw Length/Diameter (L/D): 28

Plasticizing Rate (kg/hr): 80

Injection Stroke (mm): 360

Screw Speed Range (rph): 10-56 2) Clamping System

Clamping Force (kN): 190

Clamping Stroke (mm): 350

Mould Thickness Range (mm): 370-410

Max Opening between Platens (mm): 720 3) Power Consumption

General Power (kW): 84

Hydraulic Motor (kW): 37

Electrical Heating Power (kW): 44

Average Electricals Power Rating (kW): 58 4) Air Source Connection

Required air source pressure: min.

6-10 bar; Air consumption: 0.4M3/min.

5) Water Source Connection

Required water pressure: min.

2-3 bar; Water consumption: 6M3/min.

6) Control System

100-point wall thickness control, 6" colour display.

7) Machine Dimensions

4, 985(L) x 1, 465(W) x 2, 765(H) mm 8) Machine Weight

6 tons (not including hydraulic oil and mould) 9) Production Capacity

>= 60 bottles/hour (based on qualification rate of 98%) --- What do you need to prepare for making the BPA free Bottles?

Tritan Copolyester resin granules in bags.

Simple and the Tritan resin is easy to buy locally.

Process:

1 - Load Tritan resin in the Hopper of the machine.

2 - Melt Tritan resin coming into the mould.

3 - Melt Tritan resin is shaped into a bottle in the mould.

4 - The mould is open and take out the bottle.

Very simple.

Easy to buy material and easy to operatre.

What kind of bottles does the machine can make?

2-5 gallon bottles with or without handle.
