As Automatic Up Stacking Machine - China

Huatao Group - Corrugator Belt & Spare Parts

www(dot)htwirebelt.

com sandy(at)huataogroup.

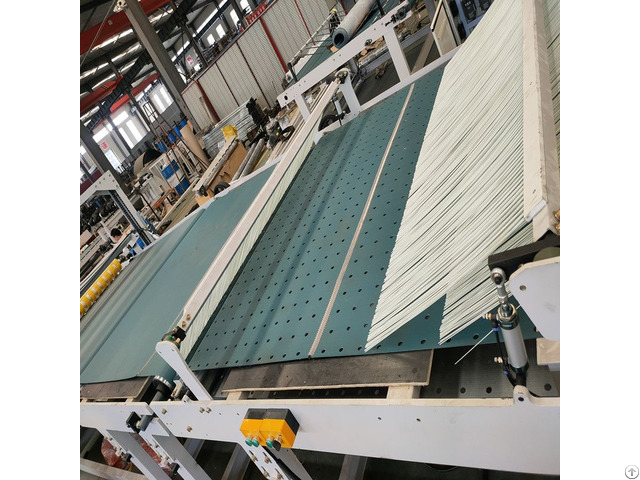

com Tel: 0086 133 8311 0583 WhatsApp: 0086 133 8311 0583 Automatic Stacker available breadth: 1400-2200mm Specification: Frequency conversion motor auto down stacker Applicable to be production line whose max speed is 180m/min Max sheet length: 3500mm, max stacking height: 1500mm Connected with production management system, it can read order and change order, which make the orders apart correct and fast.

it also can work by itself Stacking of multi orders Conveyer belt was separated to be 4 sections, driven by ac frequency conversion motor, running synchronized with the production line, it brings the suitable stack proportion according to the sheet length, which make paper board stack in good order Transducer control the frequency conversion motor to drive the roller running, speed up and down stably, board come out easily, hard to be overturn Transducer control the brake motor to drive the elevator, with counterbalance, speed up and down stably, speed counterchanges reasonably, make stacking more free and get rid of the paper board crease, improved the life of machine Rolls forms close, and lift with elevator, to reduce the waste Gross power: 30kw WIDTH(MM) DIMENSION (L X W X H)(MM) WEIGHT(T) GROSS POWER(KW)

1400 17000×2400×3200 9 24

1600 17000×2600×3200 10 24

1800 17000×2800×3200 11 24

2000 17000×3000×3200 12 24

2200 17000×3200×3200 13 24
