Ym Ck5126epro Cnc Single Column Vertical Lathe - China

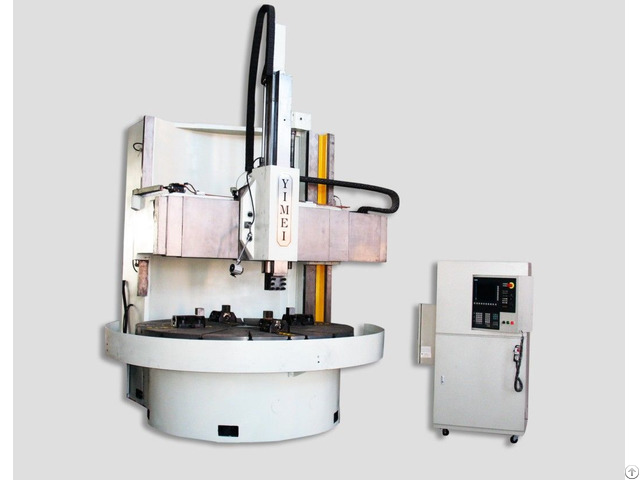

YM-CK5126Epro CNC Single Column vertical lathe

1 - The product is in Pro version with professional design, being an improved product with a huge market sales volume.

CK5112Epro and CK5116Epro adopt the identical modules (identical beam section, beam slide base, rotary slide base, ram, servo motor and servo driver) which are extremely suitable for heavy-load cutting。

2 - The working platform owns the function of waterproof and it is not necessary to worry that cutting fluid infiltrates into it.

The design of square shaped working platform facilitates the collection of cutting fluid.

。

3 - Siemens 802DSL system (user can appoint other system) is adopted; servo motor and servo driver all utilize Siemens products.

4 - Beam guiding surface is conducted with supersonic frequency quenching treatment (higher than HRC50) with the characteristics of durable service; the square ram adopts ductile iron material (QT600) while the sliding surface is sticking with the soft plastics belt, which can prolong more the overhauling period for over 10 years.

5 - The independent electric cabinet is equipped with air conditioner for refrigerating, which prolongs the reliability and service life of the electric parts significantly, facilitates repair and maintenance, and is free from the influence of machine vibration.

6 - P3 high-precision lead screw produced by Nanjing Process or Taiwan HIWIN (P1 is the highest and P6 is the lowest degree), and imported bearing support.

7 - The beam is protected by the white steel, and all the lubrication parts are supplied with certain amount of oil by the automatic lubricating pumps regularly.

8 - Four-grade machine variable speed + motor stepless variable speed, wide range of constant power and large torque.

9 - JB/T9934.1-1999 precision inspection of CNC vertical lathe is performed

JB/T9934.2-1999 technical specification of CNC vertical lathe

10 - Owning constant line speed turning, cutting thread and other functions

Company Contact:

• Posted By: Dalian YiMei Machinery Co., Ltd

• Phone: 8613604093708

• Address: The 29th,Landian,Zhuanghe,Dal ian,China, Dalian , Liaoning , China

• Email:

• Website: http://www.strija.com

• Business Description: Dalian Yimei Machinery Co., Ltd was founded in the 1950s .

  It was transformed into a private joint-stock enterprise from a state-owned one in 1997, which covers an area of more than 30, 000 square meters.

  It located in Dalian a developing city which is in the southern tip of Liaodong Peninsula, with Danda highway passing through and Danda Railway crossing the urban area.

  Our company is surrounded by fresh green mountains and long last rivers, not only with fantastic scenery but also pleasant climate.

  Our company has successively obtained many national honors and is one of the biggest machinery manufacturing vertical lathe of industrial enterprises.

  We have passed the CE certification and is the main enterprise dedicating to vertical lathe manufacture in our country.

  50 years of mechanical industry development and production practice, we formed a system that technical force is abundant , process equipment is superior , process and testing conditions are perfect, quality management development–manufacture –service system is sound.

  In this way, quality can be guaranteed.

  The maximum machining diameter has been formed from 1000mm to 10000mm that of our leading products the single and double column convention vertical lathe, series of single –column and double-column vertical lathe, and floor boring-willing machine.

  In addition, the latest development CXK series CNC vertical turning and willing center filled in the domestic blank.

  We care for our customers in a long-term and hold the concept that quality is the internal life of a company to develop a school of our own with CNC, multi-function, personalized products features.

  We commit to our customers to bear our responsibility and strive to win high praise with high quality products and the most preferential price on the bases of decreasing the cost.

  The products of our company spread all over China and export to America, Switzerland, Iran, Russia and so on over 30 countries.

  Many products reach up to the world-top class.

  We are sincerely welcome new and established customers and people of vision home and abroad to establish good cooperative relationship.

  Let us work hand in hand to create great achieve.
