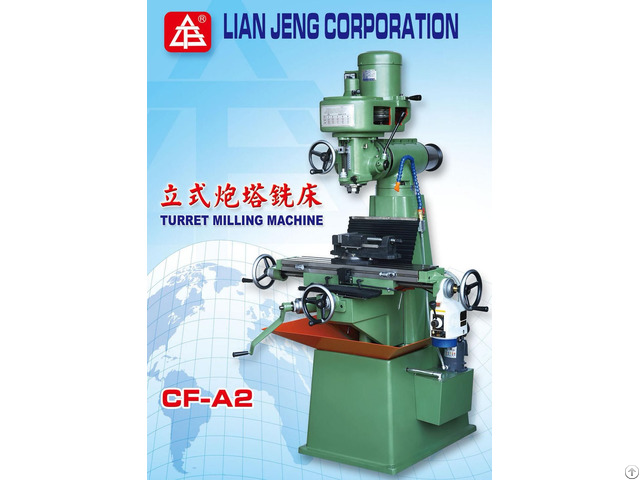

Vertical Turret Milling Machine A2 Lian Jeng Corp - Taiwan
price: 1.00 Dollar US$
Models (CF-A2)
Table Working surface(length*Width) 760x180mm Traveling (X / Y / Z) 480x200x350mm T-Slots 16mmx3 VERTICAL SPINDLE Spindle nose N.T.#30 Spindle speeds (R.P.M.
) 180, 360, 600, 900, 1200, 1400, 1590, 1800, 2800, 3180(60Hz) 150, 300, 500, 750, 1000, 1160, 1320, 1500, 2330, 2650(50Hz) Distance from spindle end to table top 50-350mm Vertical travel of quill 80mm Swiveling angle of head(right & left) 90° Cross travel of ram 180mm Horizontal rotation angle or ram 360° Motors For vertical spindle 0.75KW(1HP)-4P/8P For table feed(optional) 0.1KW(1HP)-4P For cutting fluid pump 0.1KW(1/8HP)-4P
Company Contact:
- Posted By: LIAN JENG CORPORATION
- Phone: +886425625559
- Address: No. 168, Guangqi Rd., Shengang Dist., Taichung City. , Taiwan
- Email:
Published date: December 13, 2017 - Modified date: December 13, 2017
- Business Description: LIAN-JENG CORPORATION was established in 1981.
In the same year we launched the universal vertical and horizontal milling machines,
whose quality and performance to provide guaranteed excellent machinery for customer's best choice.
Nevertheless, to obtain better efficiency and consistent quality,
we put great efforts into developing automatic hydraulic milling machine.
