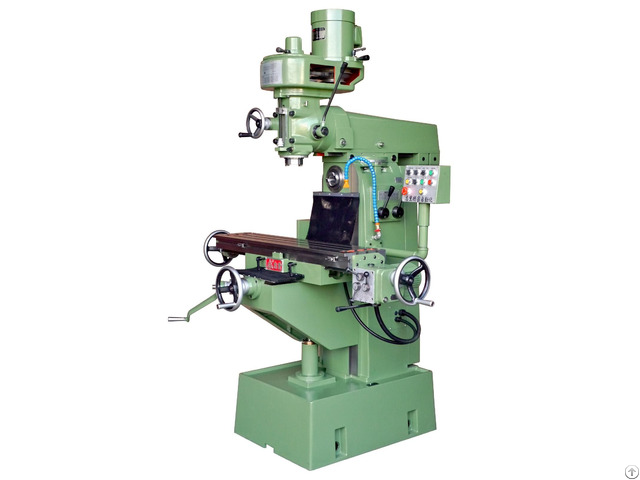

Vertical Horizontal Milling Machine G1a Lian Jeng Corp - Taiwan
price: 1.00 Dollar US$
Models (CF-G1A)
Table Working surface(length × width) 1000×230mm Table travel(x/y/z) 580×230×385mm Vertical Spindle Spindle nose N.T.#40 Spindle speed(8 steps)R.P.M 210, 420, 690, 980, 1380, 1720, 1960, 3440(60Hz) 170, 340, 570, 810, 1140, 1430, 1620, 2860(50Hz) Distance from spindle end to table top 50-525mm Distance from spindle center to column 150-450mm Vertical travel of quill surface 125mm Swiveling angle of head(right & left) 90 Cross travel of ram 230mm Horizontal rotation angle or ram 360 Horizontal Spindle Spindle nose N.T.#40 Spindle speed(6 steps)R.P.M 50, 120, 210, 320, 470, 1180(60Hz) 40, 100, 170, 260, 390, 980(50Hz) Distance from spindle center to table top 0-470mm Distance from spindle center to ram bottom 115mm Motors For vertical spindle 1.5KW(2HP)-4/8P For Horizontal spindle 1.5KW(2HP)-4P For cutting fluid pump 0.1KW(1/8HP)-4P
Company Contact:
- Posted By: LIAN JENG CORPORATION
- Phone: +886425625559
- Address: No. 168, Guangqi Rd., Shengang Dist., Taichung City. , Taiwan
- Email:
Published date: December 13, 2017
- Business Description: LIAN-JENG CORPORATION was established in 1981.
In the same year we launched the universal vertical and horizontal milling machines,
whose quality and performance to provide guaranteed excellent machinery for customer's best choice.
Nevertheless, to obtain better efficiency and consistent quality,
we put great efforts into developing automatic hydraulic milling machine.
