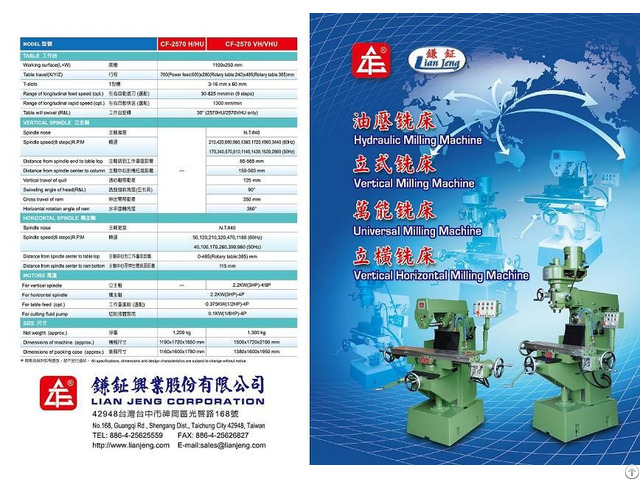

Vertical Horizontal Milling Machine Cf 2570 - Taiwan
price: 1.00 Dollar US$
Models (CF-2570VH/VHU)
Table
Working surface of table 250mm×1100mm
Longitudinal travel 700mm
Transfer travel 280mm
Vertical travel 485mm
Range of longitudinal feed speed(mm) 30~825mm/min (9Steps)
Range of longitudinal rapid speed(mm) 1300mm/min
Table will swivel(R & L) 30°
Vertical Spindle
Spindle nose N.T.#40
Spindle speed(8 steps)R.P.M 210-3440(60Hz) 170-2860(50Hz)
Distance from spindle end to table top 80-565mm
Distance from spindle center to column 150-500mm
Vertical travel of quill surface 125mm
Swiveling angle of head(right & left) 90°
Cross travel of ram 350mm
Horizontal rotation angle or ram 360°
Horizontal main spindle
Range of spindle speeds(6 speeds)(R.P.M) 60c/s(50~1180)50c/s(40~98 0)
Taper of spindle bore NT40#
Spindle center to table 0~485mm
Spindle center to over arm bottom 115mm
Company Contact:
- Posted By: LIAN JENG CORPORATION
- Phone: +886425625559
- Address: No. 168, Guangqi Rd., Shengang Dist., Taichung City. , Taiwan
- Email:
Published date: September 12, 2016
- Business Description: LIAN-JENG CORPORATION was established in 1981.
In the same year we launched the universal vertical and horizontal milling machines,
whose quality and performance to provide guaranteed excellent machinery for customer's best choice.
Nevertheless, to obtain better efficiency and consistent quality,
we put great efforts into developing automatic hydraulic milling machine.
