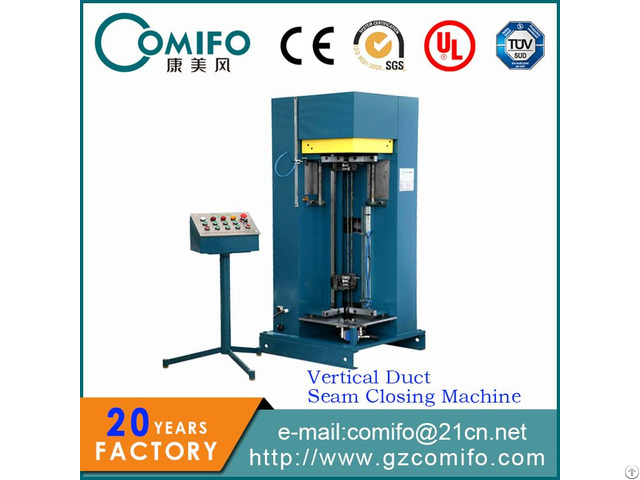

Vertical Duct Seam Closing Machine - China

Generally, three different seams are common in the industry to connect the corners of the ducts : button lock seam, pittsburgh seam and duct seam .

Button snap lock and pittsburgh lock can be produced on the Comifo lock forming mahicnes .

The pittsburgh seam shows much better results and can also be used for a higher pressure.

Vertical duct seam closer is what we highly recommed .

Pittsburgh joint is commonly used to join the seams of metal ducts .

Seam closing has traditionally been accomplished by manually hammering the margin of the seam against the duct wall ( penning ) .

Disadvantages of such peening inclufe the time required and the almost intolerable noise produced .

The latest desigh in seaming technology is now available .

At the pittsburgh joint .

the individual seams are called pittsburgh seam ( pittsburgh lock ) and standing seam ( right angle lock ) .

On a pittsburgh joint, the operator pushes the standing seam into the pittsburgh seam, fastens them to each other and closes the joint on a seam mahcine .

Model No.

Style Thickness Range Duct Length Speed

VWSC-1600 Verical 0.5-1.2mm 1200-1550mm 24m/min( 78 FPM )
