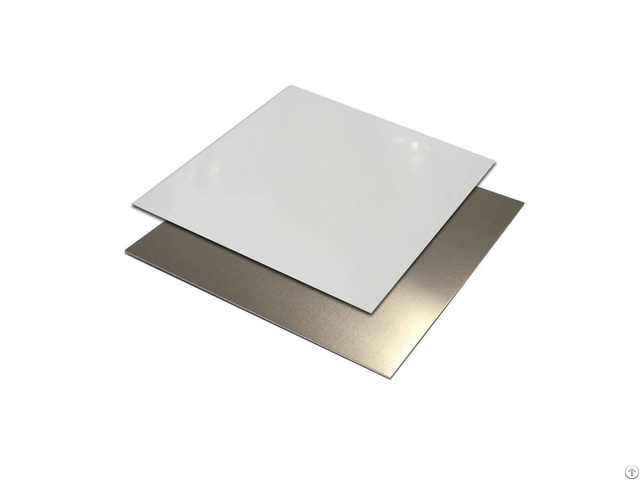

Typical Brazing Material Aa3003 Aluminum Sheet Coil - China

1 - Specification

1.1 - Material AA303 alloy;

1.2 - Temper: O, H14, H16 is typical;

1.3 - Dimension

Width from 450mm to 1300mm, Thickness from 0.08mm to 2mm;

Tolerance for width ±1mm, Tolerance for thickness ±0.01mm;

1.4 - Mechanical Properties

Meet industry standard and China standard or custom standard

1.5 - Chemical composition

Silicon: Max 0.6%;

Iron: Max 0.7%

Copper: 0.05 to 0.20%

Manganese: 1.0 to 1.5%

Magnesium: Max 0.05%

Chromium: Max 0.05%

Zinc: 1.2 to 1.8%

Bismuth: Max 0.05%

Zirconium: Max 0.05%

Titanium: Max 0.05%

Aluminum: Remainder

1.6 - Depth of Curvature

In any length or width of 1 meter of the material, the depth of arc shall not exceed 2 mm.

2 - Surface finish

a.

The material shall be free from pinholes and tearing;

b.

The material shall be free waves and buckles;

c.

The slit edges must be free from burrs and shall be straight and parallel.

3 - Packing details

To be packed in wooden boxes with card board and cutting with paper core in-between the coil max package weight 1500 kgs.

a.

The coil eye dia shall be around 250/300mm;

b.

The coil outside dia shall be no more than1350mm;

c.

Packing shall not leave any damages to the slit edges or shall not collapse in the inner;

d.

Coil orientation in clockwise direction and eye to sky.

4 - Marking

Each box to be legibly marked with the name of the manufacturer or supplier, the alloy designation of material, condition, dimensions and weight.

5 - Application

Typically used in heat exchange field
