Square Metal Tube Laser Cutting Machine - China

Fiber Laser Round/Square Metal Tube Laser Cutting Machine

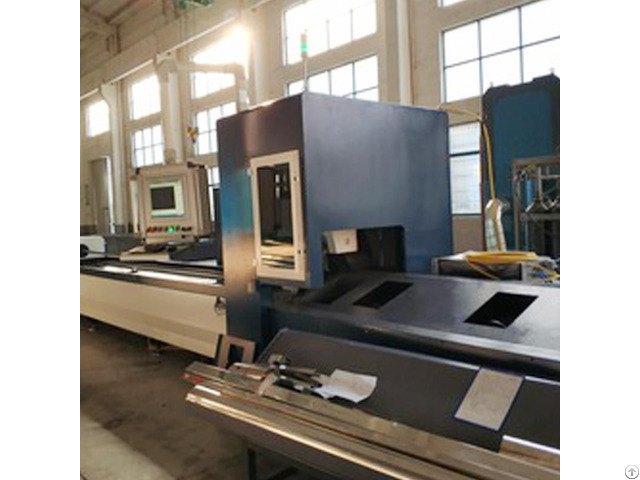

New laser tube cutting machine with 3 pneumatic chucks.

We manufacture 1kw, 2kw, 3kw fiber laser cutting machine.

Complete machine has TWO years warranty.

Only tube fiber laser cutting machine, or tube&plate feber laser cutting machine, customize as your request.

Round/Square tube cutting available.

Wuxi Qiaolian CNC Welding&Cutting Machine Co., Ltd is a branch of Qiaolian Group, professional in CNC machine R&D, production, especially for high precision machine like fiber laser cutting machine, HD plasma cutting machine, Robot welding machineetc.

Our reputation in this field is long-life of machine, more and more old customers come back for new business after used our machine for some years, as they have seen the stability of our machine same as Germany, USA brand.

Machine specification New Laser Tube Cutting Machine

Item Specification

Max pipe length(mm) 6000

Max round pipe diameter(mm) 200

Minmum round pipe diameter(mm) 20

Max square pipe diameter(mm) Minimum square pipe diameter (mm) Minimum pipe thickness(mm) Max pipe thickness(mm) 10

Effective stroke X(mm) 6050 Y(mm) 500 Z(mm) 150 W(°) 360

Position accuracy X(mm) ±0.10 Y(mm) ±0.05 W(°) ±0.02 Z(mm) ±0.01

Repeat accuracy X(mm) ±0.08 Y(mm) ±0.03 Z(mm) ±0.005 W(°) ±0.01

Max position speed X(m/min) 95 Y(m/min) 95 Z(m/min) 35 W(n/min) 100

Complete machine power consumption(Kwh) 18

Complete machine weight (T) 8.8

Dimention: L×W×H(mm) 8230×1580×1500

New Laser Tube Cutting Machine Manufacturer DETAILS:

1 - Lower intertia and faster response characteristics

2 - Good gear transmission performance leads to high precision, increased lubrication will improve wear resistance

3 - Good braking performance and high stability will make the motor curve more stable

4 - Easy installation
