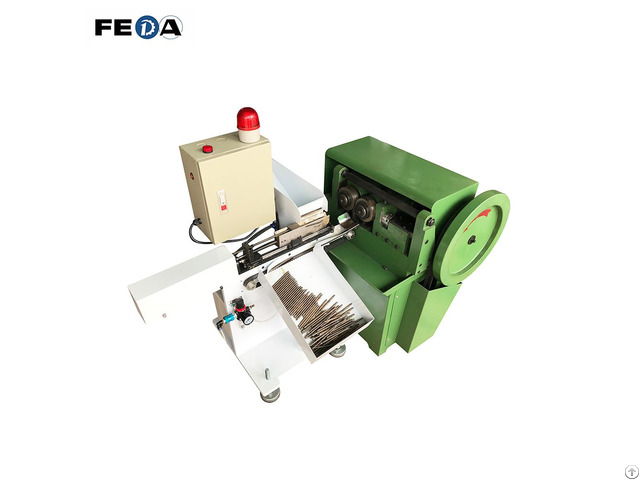

Small Thread Rolling Machine Fd 3t - China
price: 5650.00 Dollar US$
Working diameter 2-10mm Thread pitch 0.4-1.5mm Thread length 28mm Spindle speed 27rpm Outside diameter of rolling die 100mm Inside diameter of rolling die 50.5mm Thickness of rolling die 30mm Distance between the roller shaft 90-130mm Main power motor 1HP(0.75KW) Distance from bed surface to roller center 85mm Supply voltage 380V 3P 50Hz Weight(reference) 300(KG) Package Dimension(L*W*H) 780*680*870 mm Dimension(L*W*H) 650*600*750 mm
Company Contact:
- Posted By: Shenzhen Feda Machinery Industry Co., Ltd
- Phone: 13612982050
- Address: No. 142, Honghu Road, Yanchuan Community, Yanluo Street, Shenzhen , Guangdong , China
- Email:
- Website: http://www.szfeda.com
Published date: November 5, 2021
- Business Description: FEDA is a modern state-level high-tech enterprise integrating R & D, production and sales, which focus on manufacturing of thread rolling machine, thread rolling dies, automatic tapping machine, auto lathe machine & vibration bowl for more than 20 years, locates in Shenzhen, China.
