Coil thickness: 2.0-8.0mm

Coil width: 500-2200mm

Productin speed: 20-60m/min

Pipe material: HR, CR, PPGI, GI, AL, CU, etc

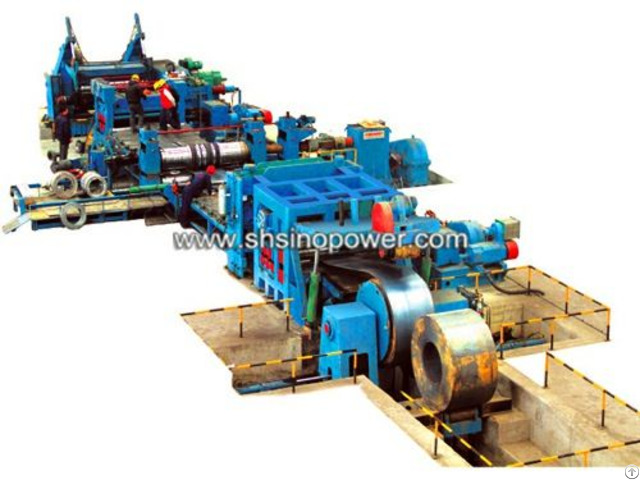

SP(1-8) automatic strip cutting machine suppliers is applicable to coils of various specifications.

It is used for cutting the coil into required width for the use of punch line through the procedure of uncoiling, pre-leveling, cropping, slitting and recoiling.

It has advantages such as proper layout, easy operation, highly automated and high production efficiency.

1 - Process Flow

Raw material platform→ carrying coil car→ hydraulic uncoiler→ feeding guide plate→ pair pinching roller, five rollers leveling→ coil head cutting→ front looping table→ side guiding table→ pinching machine→ disc slitting→ curling machine→ back looping table→ pre-feeding coils→ tension table→ rewinding→ discharging car→ hydraulic bracket→ Electric control 2 - Technical Parameters of metal strip cutting machine suppliers

Model Thickness Coil Width Coil Weight Line Speed Coil Material

mm mm tons m/min

SP(0.2-2) 0.3-2.0 400-1600 ≤20 0~150 δs≤230N/2, SP(0.3-3) 0.3-3.0 400-1600 ≤20 0~120

SP(0.4-4) 0.4-4 500-2200 ≤25 0~100

SP(1-6) 1-6 500-2200 ≤25 0-80

SP(1-8) 2-8 500-2200 ≤25 0-60

SP(2-10) 2-10 500-2200 ≤35 0-60

SP(3-14) 3-14 500-2200 ≤35 0-40

SP(3-16) 3-16 500-2300 ≤35 0-40

SP(5-20) 5-20 500-2300 ≤35 0-20 Please Visit our web site for more details or get offers from our email: SINO POWER INDUSTRIAL CO., LIMITED -shsinopower.
