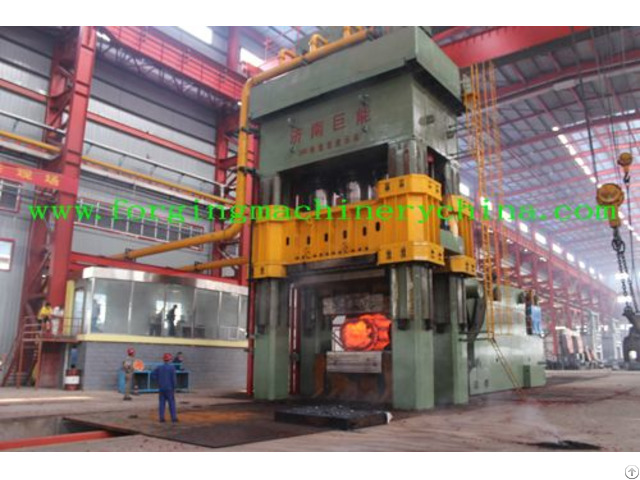

Open Die Forging Press - China
price: 1000000.00 Dollar US$
Open die forging press 630t-15000t Oil hydraulic Working pressure 25MPa, 31.5MPa, 63MPa, 100MPa 2-column / 4-column Prestressing frame Welding beam / casting beam Moveable working table Rotary forging table Rexroth pump Special designed cartridge valves Siemens PLC 12000 ton open die forging press
Nominal press force 120000kN
Rated pressure of working medium 25Mpa
Open daylight 7000mm
Stroke of gliading block 3000mm
Center distance between columns 5000mm
Diameter of column prestressing frame
Size of moveable working table 10000x4000x400mm
Stroke of moveable working table 7000mm
Force of return 10800kN
Working stations of moveable working table 3
Eccentricity of forging 250x200mm
Pressure grading 3
First pressure 40000kN
Secondly pressure 80000kN
Thirdly pressure 120000kN
Idle down speed of gliding block 250mm/s
Pressing speed at first pressure grade 120mm/s
Pressing speed at secondly pressure grade 80mm/s
Pressing speed at thirdly pressure grade 40mm/s
Return speed 250mm/s
Speed of moveable working table 150mm/s
Re-positioning accuracy of moveable working table ±0.5mm
Frequency of fast forging 30times/min Carring capacity of moveable working table 300t
Height of moveable working table above floor 0mm
Total motor power 5280kW
Total weight of press (not including hydraulic station) 2100t
Total height above floor 18300mm
Company Contact:
- Posted By: Jinan Linteng Forging Machinery Co., Ltd.
- Phone: 8653187068186
- Address: Hi-Tech Industrial Park, Changqing District, Jinan , China
- Email:
Published date: January 17, 2019
- Business Description: We are the leading company in China to manufacturer large forging hydrualic press(Max.
capacity to 500MN), ring rolling mill, forging manipulator, cross wedge rolling mill, electric screw press.
