Metal Slitting Line Machine Shsinopower Com - China

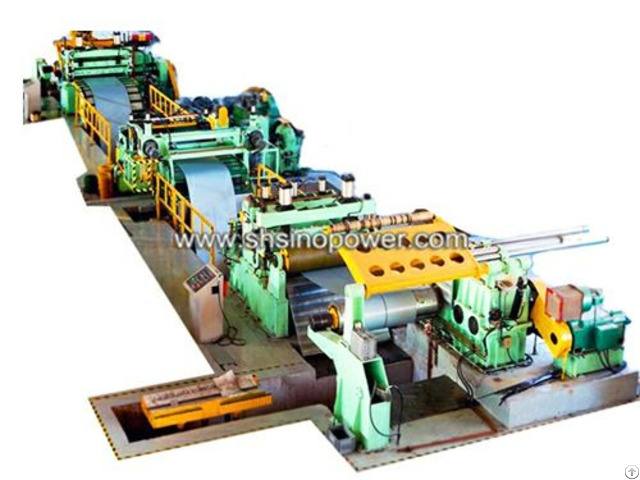

SP(0.2-2.0) metal slitting line machine-shsinopower.

com

Coil thickness: 0.2-2.0mm

Coil width: 400-1600mm

Productin speed: 20-120m/min

Pipe material: HR, CR, PPGI, GI, AL, CU, etc

SP(0.2-2.0) Series Steel slitting line is applicable to coils of various specifications.

It is used for slitting the coil into required width for the use of punch line through the procedure of uncoiling, pre-leveling, cropping, slitting and recoiling.

It has advantages such as proper layout, easy operation, highly automated and high production efficiency.

1 - Technical Parameters of metal slitting line

Model Thickness Coil Width Coil Weight Number of Strip Line Speed Coil Material

mm mm tons pcs m/min

SP(0.2-2) 0.3-2.0 400-1600 ≤20 8~20 0~150 δs≤230N/2, SP(0.3-3) 0.3-3.0 400-1600 ≤20 8~20 0~120

SP(1-6) 1-6 500-2200 ≤25 5~15 0-80

SP(1-8) 2-8 500-2200 ≤25 5~12 0-60

SP(2-10) 2-10 500-2200 ≤35 3~10 0-60

SP(2-12) 2-12 500-2200 ≤35 3~10 0-40

SP(3-16) 3-16 500-2300 ≤35 2~8 0-40

SP(5-20) 5-20 500-2300 ≤35 2~8 0-20 2 - Process Flow of slitting line machine

Raw material platform→ carrying coil car→ hydraulic uncoiler→ feeding guide plate→ pair pinching roller, five rollers leveling→ coil head cutting→ front looping table→ side guiding table→ pinching machine→ disc slitting→ curling machine→ back looping table→ pre-feeding coils→ tension table→ rewinding→ discharging car→ hydraulic bracket→ Electric control Please Visit our web site for more details or get offers from our email: SINO POWER INDUSTRIAL CO., LIMITED -shsinopower.
