J55 2000 Clutch Operated Screw Press - China

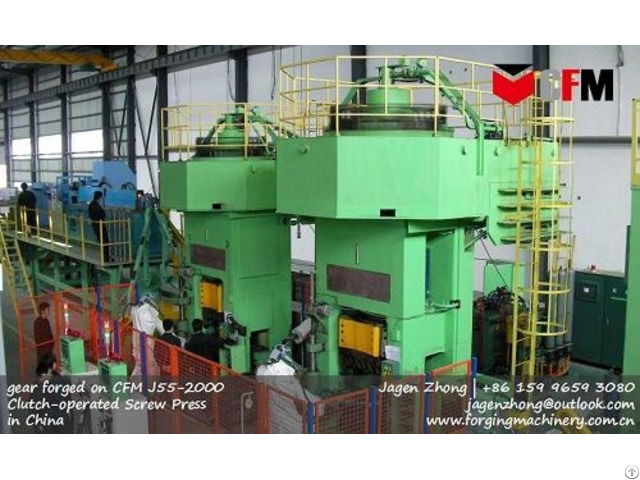

J55 Clutch-operated Screw Press

The maximum energy can be output just by dropping 12.5% of the flywheel speed and the forming speed can be keep stably at 0.5m/s or so.

Using the VFD, the deforming speed can be adjustable between 0.25m/s to 0.6m/s, which is suitable for alloy forgings.

Using hydraulic clutch control can realize the heavy and light striking and continuous striking, and the striking energy can be loaded at any point of the stroke.

High deforming energy, twice compared with other screw presses with the same specification.

Using duplex guides of cylindrical guide and the X shape guide, assure eccentric load and suitable for multi-station forging process.

Long slider stroke without fixed bottom dead point, it is convenient to adjust dies, which will improve the product efficiency and the die lifetime.

Using hydraulic cylinder for return stroke, the flywheel does not need to revolve reversely, so the flywheel energy loss and installed power are small.

It is energy-efficient.

Striking energy, striking stroke, multi-station forging can be preset by PLC.

And it can display fault information automatically.

It is suitable for continuous product lines for moderate and mass production, and can realize high precision, high efficiency, energy saving and material saving.

Best Wishes! Jagen Zhong Foreign Trade Manager China Forging Machinery Co., Ltd.

No.

88 Shanghu Road, Chengdong Town, Haian, Nantong, Jiangsu Province, P.R.China (226600)

Tel: 0086-513-8836 8808 Fax: 0086-513-8836 9186

Mob: 0086-159 9659 3080

Company Contact:

• Posted By: China Forging Machinery Co.,Ltd.

• Phone: 008615996593080

• Address: No.88 Shanghu Road, Chengdong Town, Haian, Nantong , Jiangsu , China

• Email:

• Website: http://www.forgingmachinery.com.cn

• Business Description: We, China Forging Machinery Co., Ltd. (CFM) are the holding subsidiary of Beijing Research Institute of Mechanical and Electrical Technology (BRIMET, a branch of China Academy of Machinery Science and Technology (CAM) administrated directly by SASAC).

  CFM is located in National Haian Economic and Technical Development Zone, which is in the north of Yangtze Delta Area, at the cross point of China eastern and Jiangsu northern high speed rail along the sea and high expressway.

  Our products are mainly divided into three categories.

  The first is forging machinery, including CNC fully hydraulic die forging hammer, follow-up control fully hydraulic free die forging hammer, high energy clutch-operated screw press, hot die forging mechanical press, automatic forging roll , cross wedge roll, auxiliary forging machines, automatic forging lines, die and forging process.

  The second is fabricating machinery, including high speed servo-driven hydraulic press, rolling machine for ship, upper roller universal rolling machines, horizontal lower adjusting rolling machine, four roller rolling machine, rolling machines for autos, steel pipe rolling line, leveler and automatic sheet metal forming lines.

  The third is piling machinery, including off-shore hydraulic piling hammer, on-shore hydraulic piling hammer and hydraulic rapid impact compaction.

  Our factory occupies 56, 000 square meters, with nearly 20, 000 square meters full steel frame workshop.

  Assembly workshop maximum lifting capability is 120 tons.

  The metalworking workshop has large CNC and digital display metal cutting machines with maximum machining size of 4X12 meters.

  We have been certified by ISO9001 quality management system and CE certificate.

  We also have one production research institute, BRIMET Production Research Center, mainly for improving products reliability, working accuracy and green intelligent.

  It has many independent intellectual property rights on forming technology, piling technology, equipment and system integrated technology.

  And it has got national and province rewards many times.

  Additionally, we have one subsidiary factory, Jiangsu Huiyang Precision Forging Co., Ltd., mainly for trialing our forging machines and process.

  So we can provide turnkey solutions for customers, including machine manufacturing, production line debugging and forgings preproduction.

  We will insist on the developing strategy of “controlling key, mastering core, basing on high-end and facing international”, and adhering to philosophies “adoring craftsman, to be diligent and pragmatic, pursuing excellence, to become pioneers”.

  We will do our best to build the state-level and international competitive industrial base.
