Heavy duty cnc plasma cutting machine for metal R2030P

Features:

1 - Frame adopts strong welded structure, full rigidity make sure machine won’t deform after years of works.

2 - Chinese top quality LGK power source or American Hypertherm power source 45-200A high precision.

DSP control system or Pro Start control system, easy to learn and use.

3 - It can on board metal processing at the same time, save costs and save space.

4 - The CNC system is high configuration.

Automatic arc, stable performance, the success rate of 99% or more.

5 - Clean dust by itself, the replacement of security

6 - Gantry double drive structure, gear transmission without clearance, high quality linear rail, ensure high accuracy and fast speed.

7 - Be able to cut aluminum, steel and any other conductive metal at max speed of 8000mm/min.

8 - Compatible with any design software.

Applications:

1) Applicable Industries: Processing shells of machinery and electronic products, Advertising signs, electrical accessories, board cutting.

2) Applicable materials: metal, bronze, copper and so on.

cnc plasma.

jpg

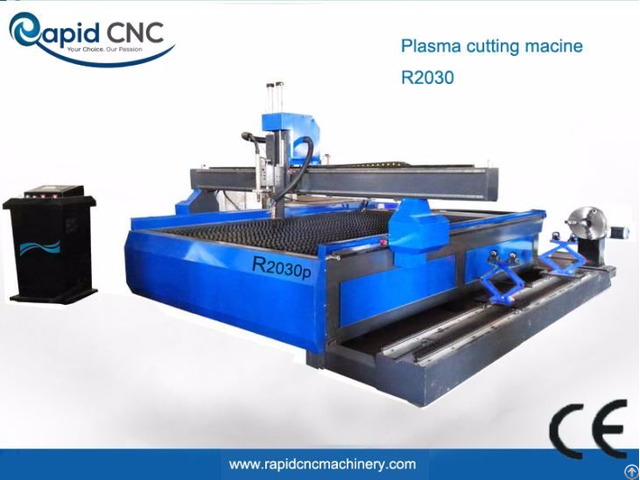

4 axis plasma cutting machine.

jpg

Technical parameters:

No

Description

Parameter

1

Effective cutting area:

2000x3000mm

2

Cutting thickness:

0.5-20mm

3

Cutting Speed:

0-8000mm/min

4

X, Y, Z repositioning Accuracy:

±0.05mm

5

Table Surface:

Blade Steel

6

Frame:

Heavy steel welded

7

X, Y Structure:

square orbits

8

Z Structure:

THC

9

Max.

Power Consumption:

<2000W

10

Max.

Rapid Travel Rate:

15000mm/min

11

Max.

Working Speed:

8000mm/min

12

Generator power

45-200A

13

Drive Motors:

Stepper system

14

Working Voltage:

AC220V/50Hz 15

Command Language:

G code

16

Operating System:

DSP System (options: Start)

17

Computer Interface:

USB

18

Flash Memory:

128M(U Disk)

19

Software Compatibility:

Type3/UcancameV9 software

20

Flame cutting aid

Optional

21

Rotary clamps

Optional

Main accessories included: No

Items

Qty

1

Data connecting cable

1pcs

2

DSP controller

1pcs

3

DSP controller data wire

1pcs

4

Fastcam

1set

5

Guarantee card

1pcs

6

Eligible certificate

1pcs

7

User manual

1pcs

8

nozzle

10pcs

9

Hex-angular spanner

3pcs

10

Emergency Button

1pcs

11

Start Button

1pcs

12

Limit switch

2pcs

13

Generator

1pcs
