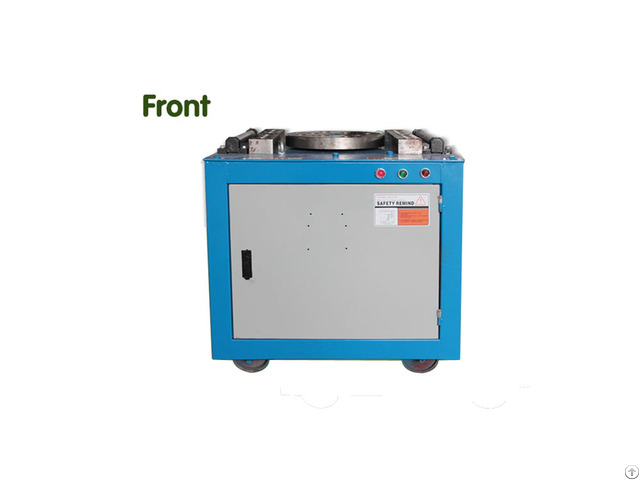

Gw 40c Carbon Steel Bending Machine - China
price: 1000.00 Dollar US$
china coal0001 GW 40C Carbon Steel Bending Machine Introduction of GW 40C Carbon Steel Bending Machine
This GW 40C Carbon Steel Bending Machine adopts the fully enclosed gear box separated from the working disk for no distortions even under the condition of heavy loads and no oil leaking while lifting the machine.
• Dust proof brake motor and two limit switch to ensure the accuracy of the bending angle also after stopping and restarting.
• Gear .
Gear shaft, working disk, stop gauge, pile head and PILE HEADS are made of high quality alloy steel with proper heat treatment.
(quenching /tempering/high frequency), and 3mm thick external case to ensure high performances also under heavy loads and long working life.
Parameter of GW 40C Carbon Steel Bending Machine Model GW40C
A3 Round bar 6-40mm
II reinforced bar 6-32mm
Working mode Hand manual
Disc diameter 350mm
Bending Speed 20-30pcs/min
Motor Power 3KW
Input voltage 220VAC 380VAC 415VAC or customized
Motro speed 1880r/min
Driving mode Worm gear
Size 750*750*730mm
Weight 350KGS
