Fine Stainless Steel Mesh Milesenwiremesh - China

Fine Stainless Steel Mesh

Fine stainless steel mesh is made of stainless steel wire through warp and weft woven.

Mainly used for the filtration and screening of gas, liquid and solid, the separation of media and so on.

It has the characteristics of acid, alkali, high temperature and grind, etc., and is widely used in petroleum, chemical, automotive, new energy, food, medicine and other industries.

Product description of fine stainless steel mesh

Fine stainless steel mesh is one of the most popular fine woven wire mesh with different mesh, wire diameter, and aperture diameter to have a variety of types and finished woven wire mesh products.

Therefore, it is a versatile mesh product, mainly used for filtration and sieving of gases, liquids and solids, separation of media, etc.

Features

Resistant to acid, alkali, high temperature and abrasion, widely used in petroleum, chemical, automotive, new energy, food, pharmaceutical and other industries.

Material

Stainless steel 201, 202, 304, 304L, 316, 316L, 321, 430 grade

Number of mesh

1-635 mesh

Wire diameter

0.0203mm-4.0000mm (0.0008 inch-0.157 inch)

Hole diameter

0.0203mm-21.4mm(0.0008 inch-0.84 inch)

Weave types

According to the opening type and woven type, the fine stainless steel mesh can be divided into

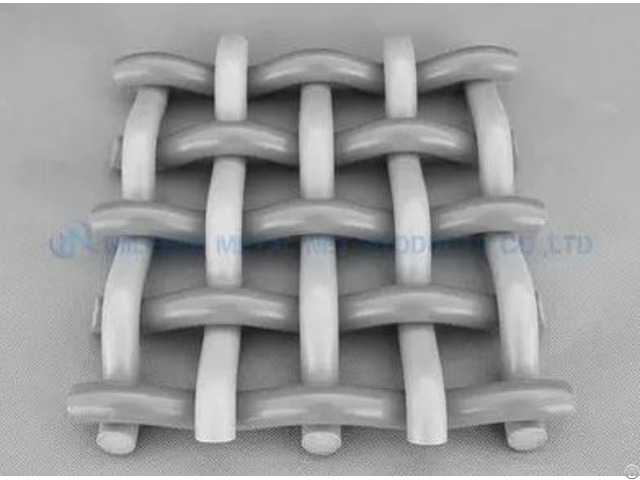

square mesh(plain weave, twill weave), generally the wire diameter of warp and weft are the same, the mesh count of warp and weft are the same(rectangular mesh are not the same for warp and weft mesh count), weaving type can be divided into plain weave and twill weave.

dutch weave mesh(plain dutch weave, twill dutch weave, double warp dutch weave, reverse plain dutch weave, reverse twill dutch weave).

Fine Stainless Steel Mesh Application:

Since our woven wire mesh is extremely versatile and easy to install, they can be used in a variety of applications.

Examples of common applications include:

1 - Used in Acid, Alkali environment screening mesh and filtration filter

2 - For a slurry net Petroleum industry

3 - Chemical fiber industry

4 - Filtering liquid and gas

5 - Used for Mechanical accessory security etc.

Other specific applications are

Filters, sieves, separators, strainers, slurry screens, gas diffusion, sieving particles, vents, building and construction screens, craft paper, decorative screens, fan covers, filtering liquids and gases, fireplace screens, food drying, foundation ventilation screens, drain protection screens, high clarity screens, hydraulic filters, insect screens, lamp covers, oil filters, pest control, security, water-oil separation, etc.

Application test information of fine stainless steel mesh!

Fine stainless steel mesh specifications

Square mesh specifications
