Fiber Laser Cutting Machine With Rotary Axis Akj1530fr - China

Fiber laser cutting machine widely used in many common areas of our life, such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people's daily life.

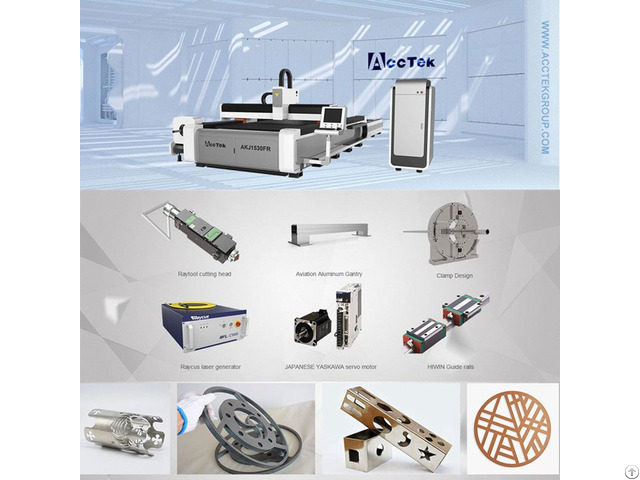

Today, ACCTEK will show you a fiber laser cutting machine with a rotary axis-AKJ1530FR.

Used for cutting a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.

Configuration of AKJ1530FR: Aviation Standard Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding.

After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries.

Light weight, high strength, no deformation.

Molded and framed by integral steel mold and die-casting technology, light crossbeam enables equipment a high operation speed, improving processing efficiency and processing quality.

Compared with cast aluminum gantry eliminata casting defects such as sand holes and have better overall performance.

Raycus laser generator

Raycus has an efficient and professional R&D and production team.

The single module CW fiber laser series not only can meet diversified demands of customers to the greatest extent, but also provide personal customization service.

Now laser output connector is QBH, with multiple control modes.

Swiss Raytools brand auto-focusing cutting head

The Raytools Laser Cutting Heads are released based on Switzerland RAYTOOLS, which are suitable for medium and high power fiber lasers in industrial applications.

1 - It adopts imported closed-loop motor, high-speed perforation and cutting of various material thickness, and the repeating precision is 0.01mm.

2 - Automatically find the best focal length instead of mamual focusing, the adjustment range is -10-+10mm.

The focusing speed reaches 400mm/s, more efficient.

3 - IP65 dust-proof design, fully protect internal optical components and extend service life.

4 - Buit-in collimating lens focusing lens double water cooling structure, reducing the temperature of the cutting head and prolonging the service life of the cutting head.

HIWIN Guide rails

Rail works with slider, drive the machine move.

Smooth running, high-speed silent, high abrasion resistance, and good load-carrying capacity.

Japanese Yaskawa Servo Motor

1 - It has the highest amplifier responsiveness in the same industry, which greatly shortens the setting time, realizes acceleration and deceletation at high speed, and has fast response.

2 - Low heat, low noise, high speed and high precision, 3 - Strong anti-interference ability and strong anti-overload capability.

4 - There is automatic adjustment mode, if the effect is not good, it can be adjusted more conveniently.

Rotary axis for tube tubes

For cutting round pipes and square tubes.

It adopts an electric clamp design on both sides and it can cut 20-200mm diamater's tube.

The above is the introduction of AKJ1530FR.

If you need to buy a suitable metal fiber laser cutting machine, you can learn about the performance and price of the product online; if you want to know the machine on the spot in the factory, you can also contact us, and you are welcome to visit the company.
