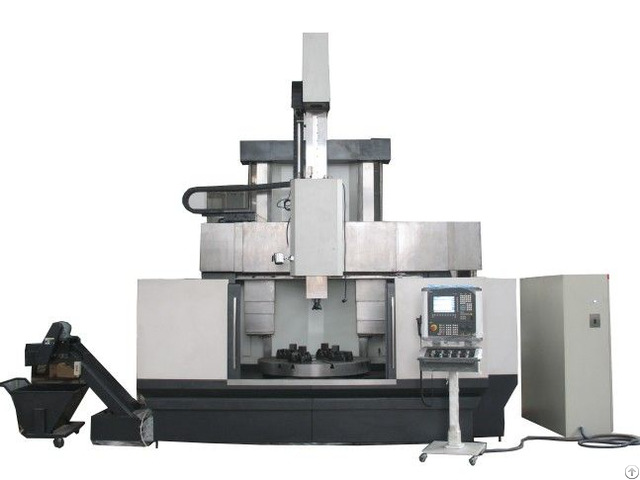

CXK200 CNC vertical turning center

1 - CXK series CNC vertical turning and milling center was developed by our

company independently.

The new product is multi-function, high-precision, high-efficiency compound machine tools.

This machine is widely used in military project, aerospace, shipbuilding, nuclear power, railway, etc with advanced technology, yield efficiency, processing precision.

2 - CXK series CNC vertical turning and milling center not only own

thefunctions that convention CNC vertical has.

All process except undersurface can be finished with one time clamping, such as turning, milling, boring, tapping, etc.

Many kinds of more complicated curved surfaces, such as vane, can be also conducted with, if double swing milling head is set up.

It has x and z axis, c three CNC for triaxial linkage.

3 - The main components and main transmission adopts thermal symmetrical structure, with high thermal stability.

4 - Worktable main shaft adopts high-precision double row cylindrical roller

bearing for centering in radial direction, and adopts large ball thrust bearing for loading in axial direction.

Worktable is provided with the functions of precision indexing and turning and milling feedings.

5 - The beam has hierarchical positioning function.

6 - The ram adopts high-precision ball screw transmission.

Machine is setup with ATC with12-20 tool station.

7 - Siemens 840DSL system (user can appoint other system) is adopted;

servo motor and servo driver all utilize Siemens products.
