Crgo Slitting Line - China
price: contact company for price

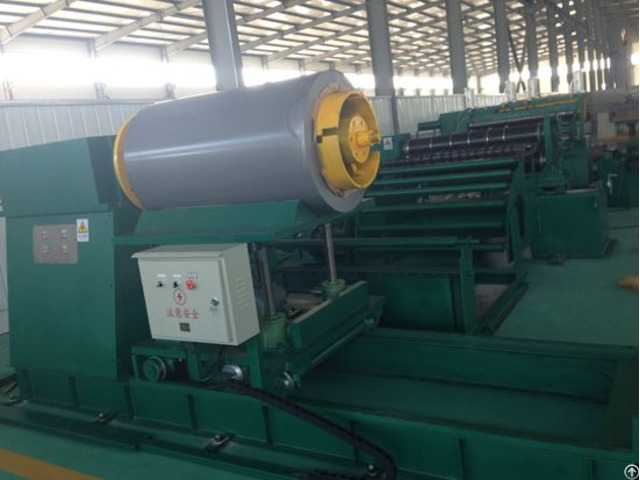

Steel slitting machine is cutting the C.R.G.
O silicon steel into strip, for producing the silicon steel lamination for transformer core.
Steel slitting Machine --Features:
The line is suitable for kinds of CRGO, Silicon steel coil, cold rolled steel strip, hot rolled plates, galvanized strip, color coated plates, stainless steel, tinplate etc.
1 - Thickness of roll slitting silicon steel sheet or low carbon steel sheet: 0.2~0.5mm
2 - Width of the rolling slitting sheet: 40~1250mm
3 .
Slitting Strip Burr: ≦0.02mm
4 .
Width tolerance of strip burr: ≦±0.2mm
5 - Speed of slitting line: 0~70M/min
6 - Decoiler drum standard diameter: Φ500mm
7 - Recoiler drum standard diameter: Φ500mm
8 - Max load capacity of Decoiler : ≦6T
9 - Total length: 11m, width 5m, covereing the area of 55 square meters.
10 - Total weight: 11tons
11 - Hight of the production line: 1m
Company Contact:
- Posted By: CangZhou Kenuo Machinery manufacture Co
- Phone: 00863173588775
- Address: No.11 jiaotong st, cangzhou , China
- Email:
Published date: May 15, 2018
- Business Description: We concentrate on precision manufacturing variety of NC transverse
cutting machines, cut to length, core cutting machine,
including numerical control straight cutting machine, NC punching and cutting machine,
multi hole punching and cutting machine, fix angle and swing shearing machine, free angle
transverse cutting machine, free angle cutting and punching machine, V notch transverse cutting machine,
V notch cutting and punching machine, full automatic transverse cut to length line, etc.
