Cnc Fully Hydarulic Die Foriging Hammer Pneumatic - China

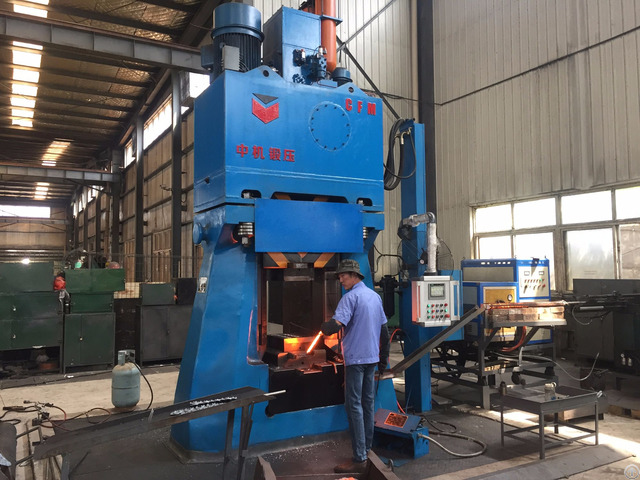

It uses one-piece U-frame casting steel hammer body, with max.

striking energy from 16kJ to 160kJ.

That frame is wide application and standard one.

Hammer body is cast as one piece to avoid columns and anvil connecting, reduce separated hammer body contacting surface wear, improve body strength, and make this hammer afford off center forging force.

Its guiding is using the steel X-shape guide rails fixed in the hammer body inner face by bolts, with three inserted locating face to avoid bolts receive force.

Imported locking washer is used to avoid bolts lose.

Extending line of contacting surface of guide rails and ram crosses on the ram center, which cannot effect guide clearance due to heating, and clearance between ram and guide rails can be adjusted to be small to assure die matching.

And this guide rails lubrication is automatic and once forging is stop, lubrication will be stop.

Its striking system is with big ram structure, which can make sure striking energy when striking speed is down.

And longer ram guiding can improve hammer working accuracy.

Main features:

01) Program control, numerical input, simple operate;

02) High integrated hydraulic control system, accumulator fixed directly on main valve block without any pipe connecting, improve hydraulic system efficiency and easy for maintenance;

03) Advanced taper valve control, fast response, good sealing and not easy to inner leakage;

04) One-piece casting steel U-frame, radial wide guide rails, to get stable and high ram guiding accuracy;

05) Touch screen man-machine interface and automatic malfunction diagnosis and alarm, easy for machine operation and maintenance;

06) Digitized and exacted controlling striking energy, avoid surplus energy harm during striking;

07) Three inserted locating faces to avoid bolts receive force and imported locking washer is used to avoid bolts lose.

08) Fully hydraulic driving system, avoid oil and air mixing;

09) Swaying combine oil cylinder and thin piston rod flexible design;

10) High and low pressure double anti-leakage design;

11) Slow up and down in the case of releasing hydraulic system pressure to make die changing safety;

12) Ram buffer is inner hydraulic buffer, to make sure safety and effective;
