Ckq5240e Cnc Double Column Vertical Lathe - China

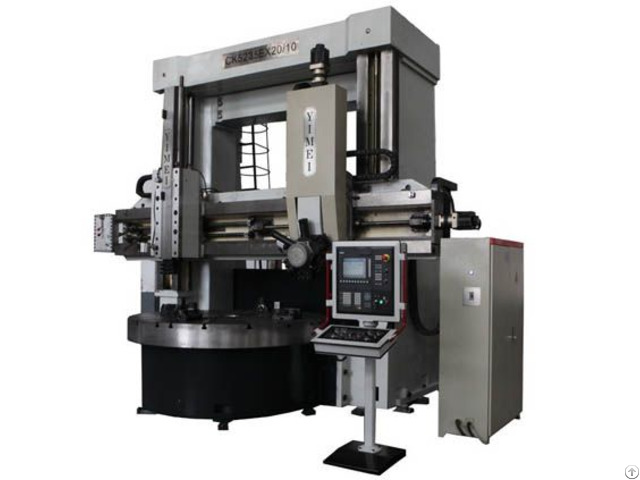

CKQ5240E CNC Double Column Vertical Lathe Column Vertical Lathe

Such series of products adopt modularization design and the function can be selected arbitrarily.

The product design is mature and reliable, thus, large amount of users have selected them.

2 - With 100% full manual operation function, the common operator of vertical lathe can operate it as well without worrying about failure to manipulate machine tool due to the incapacity of programming.

In addition, it is convenient and practical.

3 - The working platform adopts four-step machinery + big power DC motor stepless speed control (AC frequency conversion can be selected) to realize rotary with large torque and own the turning function with constant line rate.

4 - Excellent casting (HT300) is handled by heat aging.

5 - The beam guide is handled by supersonic frequency induction hardening and it adopts rolling-sliding compound type.

The vertical tool holder utilizes square type ram (QT600-3), which can realize heavy cutting.

The sliding surface uses sticking plastic treatment with durable performance.

6 - The beam guide, ram guide and vertical column guide adopt automatic lubrication pump for automatic timing and quantitative lubricating.

7 - The ball screw adopt such type of Nanjing process or Taiwan HIWIN P3 level high precision while the lead screw uses imported bearing (Germany INA) for supporting.

8 - The guide can be divided into such two types as static pressure and purely static pressure.

The bearing of dynamic and static pressure is 10 ton; the purely static pressure adopts constant current for oil supply with 16-20 tons of bearing.

9 - Independent hydraulic station is possessed, which facilitates adjustment, repair and maintenance.

10 - The precision performs JB/T9934.1-1999 precision test of CNC vertical lathe as well as JB/T9934.2-1999 technical condition of CNC vertical lathe

Company Contact:

• Posted By: Dalian YiMei Machinery Co., Ltd

• Phone: 8613604093708

• Address: The 29th,Landian,Zhuanghe,Dal ian,China, Dalian , Liaoning , China

• Email:

• Website: http://www.strija.com

• Business Description: Dalian Yimei Machinery Co., Ltd was founded in the 1950s .

  It was transformed into a private joint-stock enterprise from a state-owned one in 1997, which covers an area of more than 30, 000 square meters.

  It located in Dalian a developing city which is in the southern tip of Liaodong Peninsula, with Danda highway passing through and Danda Railway crossing the urban area.

  Our company is surrounded by fresh green mountains and long last rivers, not only with fantastic scenery but also pleasant climate.

  Our company has successively obtained many national honors and is one of the biggest machinery manufacturing vertical lathe of industrial enterprises.

  We have passed the CE certification and is the main enterprise dedicating to vertical lathe manufacture in our country.

  50 years of mechanical industry development and production practice, we formed a system that technical force is abundant , process equipment is superior , process and testing conditions are perfect, quality management development–manufacture –service system is sound.

  In this way, quality can be guaranteed.

  The maximum machining diameter has been formed from 1000mm to 10000mm that of our leading products the single and double column convention vertical lathe, series of single –column and double-column vertical lathe, and floor boring-willing machine.

  In addition, the latest development CXK series CNC vertical turning and willing center filled in the domestic blank.

  We care for our customers in a long-term and hold the concept that quality is the internal life of a company to develop a school of our own with CNC, multi-function, personalized products features.

  We commit to our customers to bear our responsibility and strive to win high praise with high quality products and the most preferential price on the bases of decreasing the cost.

  The products of our company spread all over China and export to America, Switzerland, Iran, Russia and so on over 30 countries.

  Many products reach up to the world-top class.

  We are sincerely welcome new and established customers and people of vision home and abroad to establish good cooperative relationship.

  Let us work hand in hand to create great achieve.
