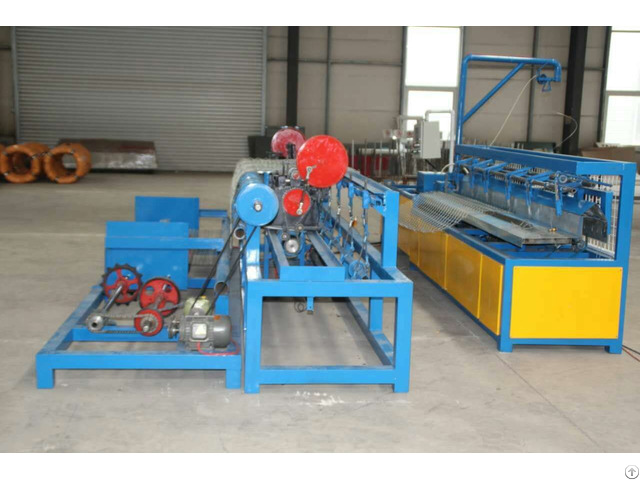

Automatic Single Wire Chain Link Fence Diamond Mesh Opening 30x30 100x100 Machine - China
price: contact company for price
ⅠMachine description
1 - Chain link fence machine also named diamond wire mesh machine, cyclone fence machine
2 - The wire go through dies, and become a half diamond shape.
Then two wires weave together and become diamond wire mesh.
3 - Auto mesh rolling machine can gather the mesh and takes off easily
4 - Touch screen and buttons can set the weave speed and mesh length ⅡMachine technical parameters
Wire diameter 1.8 mm ~ 4.0mm, single wire
Mesh opening 30X30-100X100mm
Material Galvanized Wire; PVC Coated Wire; Black Annealed Wire;
Mesh Width 600-4000mm MAX, adjustable
Weaving speed 60-90 m2/HOUR
POWER 3.0KW 1set 4.0KW 1 set 0.12KW 1set
DIMENSIONS About 3000L×2800W×2500H
Machine life Over 10 years Ⅲ Advantage
1 - China famous servo motor, save energy
2 - PLC touch screen on the main machine, take place of old cabinet, save space and operate more easily and convenient 3 - PLC control system, weave more precise
4 - Machine voltage can be adjusted by your country need
5 - One set twisted mould for free
6 - Mesh length and weave speed can be adjusted by control cabinet
7 - Production 60-90 m2/hour
8 - Different buttons on the machine can satisfy different need
9 - Emergency stop button for wire broken problem.
10 - Factory long guarantee time, 3years
11 - Straightening wheel make input wire straightly
12 - Mesh support handles can support the mesh not deformation.
13 - Supply 2 kinds of side making machine, other factories supply only 1 kind.
Company Contact:
- Posted By: Diaozhuo Wire Mesh Equipment Company
- Phone: 86-311-12345678
- Address: Huaian Road, Shijiazhuang , Hebei , China
- Email:
- Website: http://www.diaozhuomachine.com
Published date: February 21, 2019
- Business Description: 30 years wire mesh machine factory from China, Founded in 1991，we have rich experience on wire mesh manufacturing and selling
