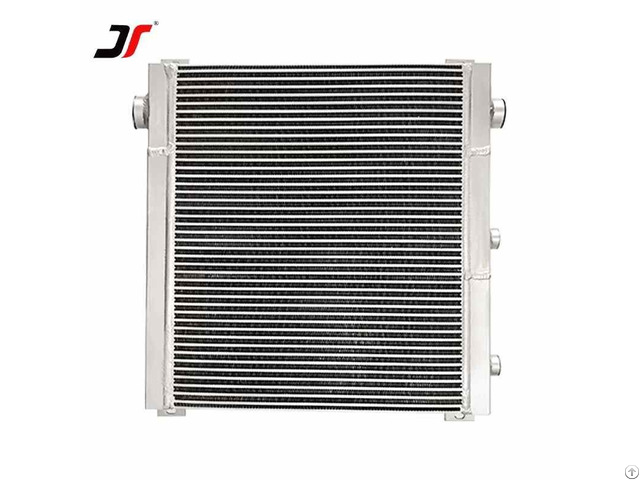

Universal Air Intercooler Jsb3612a - China

At present, the power of automobile engine is gradually increasing, and turbocharger is widely used to improve the power.

This method can not only reduce the fuel consumption of automobiles, save energy, but also improve the emission standard; With the improvement of turbocharger performance and people's attention to environmental protection, the requirements of automotive intercooler put forward higher requirements, in a limited space to rapidly improve the cooling capacity of intercooler, so as to achieve the emission requirements, at the same time reduce car fuel consumption, to achieve the purpose of energy saving.

Technical implementation idea The purpose of the patent is to provide a mixed cooling intercooler with simple structure and high heat dissipation efficiency.

In order to achieve the above purpose, this patent technology adopts the following technical scheme: a hybrid cooled cold, including inlet chamber, gas chamber, radiator pipe, dogan discharge pipe connected to the inlet chamber side and to the gas chamber motherboard, equipped with external heat transfer between radiator pipe fin, radiator pipe is placed inside the heat exchanger fin, inlet chamber side have external system board, internal and external, the shell is connected with the external motherboard and internal motherboard, external motherboard, internal motherboard and shell between the formation of an independent cavity, the inlet chamber end of the heat dissipation tube and external heat exchanger fin sealed in the cavity, the shell is provided with an inlet pipe and an outlet pipe.

Further, the inlet and outlet pipes are placed on one side of the enclosure and are far away from each other.

Company Contact:

• Posted By: Wuxi Jiusheng Heat Exchanger Co., Ltd.

• Phone: 86 18206171482

• Address: Room 2313 No.8 Tianshan Road,High-tech Zone,Wuxi China, Wuxi City, Room 2313 No.8 Tianshan Road,High-tech Zone,Wuxi China, China

• Email:

• Website: https://www.aluminumheatexchanger.com/

• Business Description: Jiusheng Heat Exchanger Co., Ltd was found in 2005, it is one of the largest and earliest Aluminum plate-fin heat exchanger supplier in China.

  With impendent R&D, JS has developed and produced wide ranges of aluminum plate-fin heat exchangers for many industry areas.

  The products are widely used in engineering machinery, air compressors, vehicle separation, construction machinery separation, hydraulic transmission oil radiators, wind and electricity, electrical locomotive separation.

  Js has completed inspection and test process with certificates, such as Proof Pressure Test, Burst Pressure Test, Pressure Cycling Test, Thermal Fatigue Test and so on.

  Nowadays JS has developed more than 10000 items of products.

  The products are widely used in USA, Mexico, Brazil, Canada, England, France, Germany, Russia, Japan, Korea and Southeast-Asia.
