Db Type Sic Heating Element - China
price: 10.00 Dollar US$

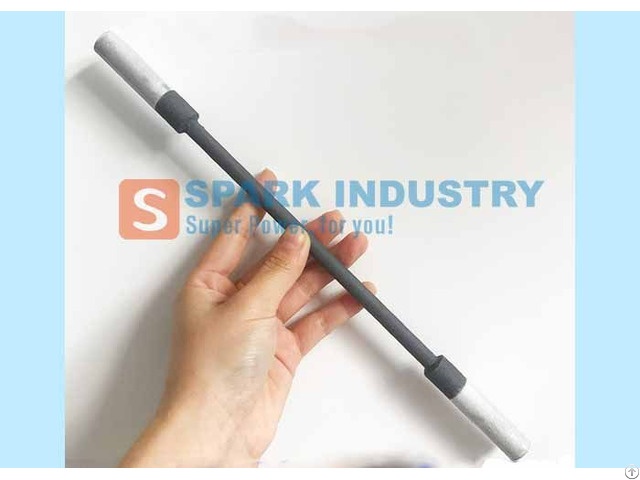

DB ( Dumbbell ) Type Silicon Carbide Heating Element Silicon carbide (SiC) Heating Element is a kind of non-metal rod or tube shape high temperature electric heating element.
It is made of selected super purity green hexagonal silicon carbide as main material, which is made into blank and silicon crystal under high temperature of 2400ºC.
In oxidizing atmosphere, its service temperature can reach 1450°C and continuous use life can reach 2000 hours.
Physical property of SIC heating element specific gravity 2.6g/cm³~2.8g/cm³ bend strength >300kg hardness >9MOH’S tensile strength >150kg/cm³ porosity rate <30% radiance 0.85 Following should be provided when inquiring or ordering DB (Dumbbell) Silicon Carbide Heating Elements: Type: DB Outer Diameters: of the Hot Zone (D1) and of the Cold Zone (D2), mm Length: of the Heating Section or the Hot Zone, HZ, mm Length: of the Cold Zone, CZ, mm Overall Length: OL, mm Example: Type DB, D1/ D2=18/28mm, HZ=300mm, CZ=350mm, OL=1000mm, Resistance 1.70Ω Specified as: SPK DB18/28/300/350/1.70Ω
Company Contact:
- Posted By: Spark Industry(Henan)Co.,LTD
- Phone: +8615515581735
- Address: Rm201 Building 6, South Commercial Zone, Xueqian Rd and 1st South Ring, Dengfeng, Henan, China, Dengfeng , Henan , China
- Email:
Published date: May 30, 2023
- Business Description: Spark industry (Henan) Co., Ltd. is a comprehensive company integrating R & D, production, sales and technical services.
Adhere to customer demand-oriented, constantly improve product quality and improve service.
Our main products are high temperature resistant heating elements, which mainly include silicon molybdenum rods and silicon carbon rods.
On the basis of traditional technology, advanced hot bending technology can be introduced to produce silicon molybdenum rods with different shapes and specifications.
The silicon carbide rod is made of high-quality raw materials and adopts traditional technology.
After continuous updating and improvement, the product quality is stable and reliable.
