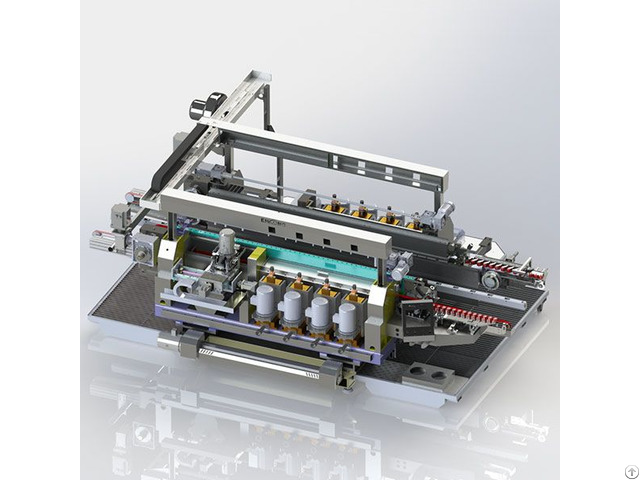

Sm 20 Glass Straight Line Double Edging Machine - China
price: 1.00 Dollar US$
SM 20 adopted auto-polish feeding senor, optimizing polish level Suitable for high polish demanded products, such as household appliances and furniture.
Machine body and components especial stable design for low vibration processing and ensure tolerance of the diagonal within 0.1 in 1m^2.
Technical Date Number of Spindles: 20 (optional: 22 spindles with Low E deletion device, Extra-polish, Servo tracking Safety Corner Cutting)
Max.
glass dimension: Up to 4200
Min.
glass size: 300x300 (optional: 250x250)
Glass thickness: 3~25 mm
Working Speed: 0.5-12 8m/mins
Width adjustment Speed: 2m/mins (optional: 8m/mins)
Max.
edge grinding: 1~3 mm
Tolerance of the diagonal(1000x1000): ±0.5mm
Tolerance on the parallelism(mm): ±0.3mm
Total power: 68 KW
Company Contact:
- Posted By: Guangdong Enkong Machinery CO., LTD.
- Phone: +86-757-27756688
- Address: No.22 Shilong Industry Road, Lunjiao Street, Foshan , GuangDong , China
- Email:
- Website: https://www.enkong.com
Published date: May 11, 2018
- Business Description: ENKONG provides series of glass edging machines such as glass double edging machine/line, glass straight line edging machine, pencil (round) edging machine, , glass beveling machine, glass miter machine
