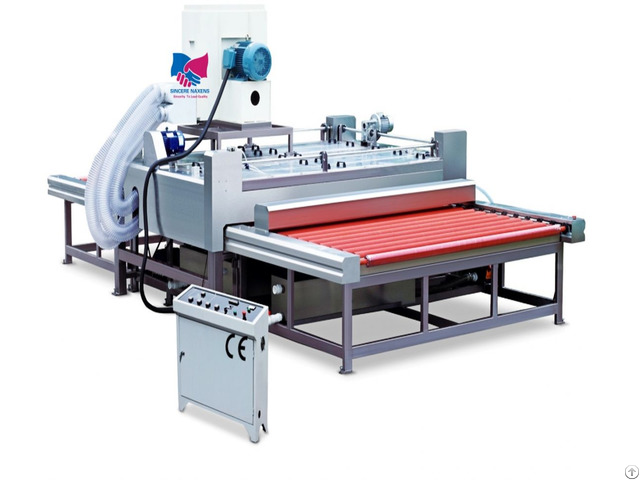

Low E Glass Washing Machine - China

Performance

1)All the cleaning parts and installation (including heating flange, temperature sensors, pipe, tank, etc.

) are made of high-quality stainless steel material.

It can be anti-corrosion, the water cycle doesn’t plug, not rust.

2) Glass Sheet Washing And Drying Machine with the supply water systems of two-grade filtered of two-pump cycle, The clear and turbid water is distributors, and recognizes conservation of water.

3)There were six brush cleaning match, forced brushing to make the glass cleanness better.

4) Three sucking water rollers are made of the quality polymer material, It has a strong capacity to suck water, longer life.



5)The rubber roller is made up of special natural solid rubber roller, formed by the grinding, good wear resistance, anti-aging, high accuracy.

6)The slide way tank with telescopic can freely drive, very convenient to input water and inspect the water quality.

Technical Data Max processing glass width size: 2500mm

Min processing glass size: 400x400mm

Glass Thickness: 3-25mm

Glass cleaning speed: 0-7m/min

Brush: 3pairs(LOW-E)


Total power: 35kW

Working Voltage: 3P 380V 50HZ(Customized)

Overall dimensions: 5500×3600×28 40mm

Weight: 4500kg
