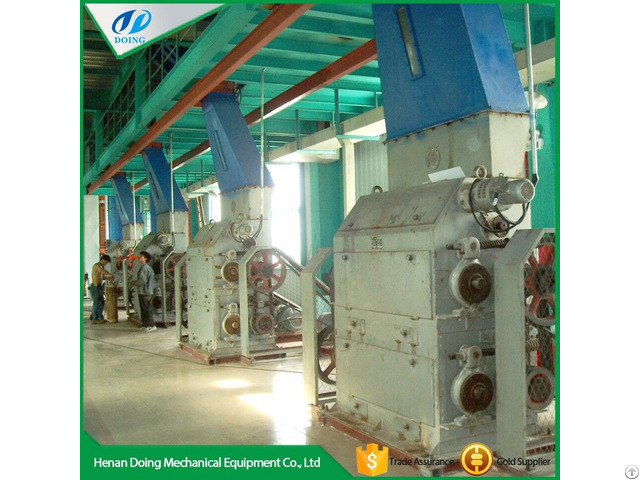

Sunflower Oil Press Machine - China

The whole sunflower oil press machine contains three workshops: sunflower pretreatment and press workshop, sunflower oil extraction workshop and sunflower oil refining workshop.



1 - Craft flow of pretreatment and pressing workshop of sunflower oil press machine sunflower → magnetic box → cleaning → husking →shell/nut separator → flaking roll → cooker → oil press or prepress → to extraction workshop Main

Equipments:

1 - seed: It’s a new kind of oil seeds for human.

The sunflower oil is good to health.

There are two kinds of sunflower seeds.

The oil content for the two kinds sunflower seeds is different.

One is 28%, the other one is 45%.

2 - Magnetic box: Clearing the iron impurity which might be in the sunflower seed.

The iron impurity will be harmful to the following machines, so we need take the iron impurities out.

3 - Cleaning: This parts have different size cleaning sieves to clean the different impurities.

After going through this part, most of the impurities are moved from sunflower.

4 - Husking: This is the special machine for sunflower.

It is used to move the shell of the sunflower seeds.

5 - Shell/nut separator: The function of this machine is to separate the shell and nut.

Then the nut will go to the next step.

5 - Cooker: This machine can adjust the water content of the sunflower seed.

It’s also good for the press and oil extraction section.

6 - Press: The press machine is used to take parts or all of the oil in the sunflower seed.

We will design the suitable machine according to your requirement.

2 - Craft flow of extraction workshop of sunflower oil press machine

solvent

↓

extractor → mixed oil → 1st and 2nd evaporation → stripping tower → crude sunflower oil

Wet meal → DTDC toaster → sunflower cake

Main Equipments:

1 - Solvent pumps: continuously spray solvent to the rotary-type extractor.

2 - Roary extractor: spray and soak the sunflower cake with solvent so that oil fats can be dissolved in solvent (form miscella).

After processing, you can get wet meal and miscella (mixed oil).

3 - DTDC: used to separate the solvent from the wet meal.

4 - Miscella tank 1st: pump the miscella ( oil with solvent) into the miscella 1st, then add 10% saline water to it.

The phospholipid and impurities in the miscella will react with the saline water, at last the reactant precipitate, reaching the goal of purifying.

5 - Miscella tank 2nd: the purified miscella will be pumped into it.

6 - Miscella stripping: it will remove the remaining solvent in miscella.

And the solvent will be discharged to condenser for recycling.

7 - Condensers: used to cooling the solvent gas separated from the wet meal and miscella for recycling.

3 - Craft flow of refining workshop of sunflower oil press machine Crude sunflower oil → degumming and deacidification → decolorization →deodorization → refined sunflower oil.

Main Process:

1 - Degumming and deacidification: The gumming is moved by phosphoric acid and hot water.

There are two ways to move the acid in the sunflower oil.

One is chemical way, the other one is physical way.

The chemical way is using NaOH to react with acid.

This way is suitable for the capacity of 5-30T per day.

The physical way is using steam and centrifugal to move the acid.

This way is used for capacity from 30-2000T per day.

2 - Decolorization: This step is used to adjust the color of the oil.

You can control the color of the sunflower oil according to the requirement of your market.

3 - Deodorization: The function of this step is to move the special smell in the oil.

This is an important standard for refined sunflower oil.



4 - FAQ

1 - What machine we can manufacture?

Cooking oil making machine: 10-2000MT per day .

Solvent extraction machine: 10-1000MT per day.

Edible oil refiner y plant : 1-600MT per day.

Palm oil processin g machine: 1-600MT per day.

2 - What kinds oil seeds we can process ?

Peanut, sunflower seeds, corn germ, cotton seeds, soybean, rapeseeds, rice bran etc.

And various oil cakes can be leached .



3 - Why chose our company?

A.

40 years manufacturing experience.

B.

26 technical engineers research new efficient processing craft and instruct manufacturing and installation.

C.

76 technicians - professional installation team -with rich and mature installation and training experience.

Company Contact:

• Posted By: Henan Doing Mechanical Equipment Co., Ltd

• Phone: 86-371-56771823

• Address: R1408, Building 9, NO.133, Yaozhai Road, Zhengzhou , Henan , China

• Email:

• Website: https://www.doinggroup.com

• Business Description: Henan Doing Mechanical Equipment Co., ltd located in Henan Province, is a main producer of oil equipment in China and a unit exempt from quality examination.

  Our company has a research institution which develops new products with our experiment basis and an integrative joint-stock production company of oil and electromechanical engineering, production and installation.

  We continue to introduce foreign talents, renew products and take the leading position in this field.

  Our products have passed ISO9001 international quality system management cortication.

  Our company has got the title of "bank grade AAA enterprise".

  Our company covers 99000m2 and has fixed assets of RMB50 million.

  We have 480 staff members, of whom 6 senior engineers, 22 engineers and more than 70 installation workers with rich experience.

  We have had good cooperation with Beijing Science and Technology University, Sian Oil Science Research Institution, Zhengzhou Industry College and other authorized research agencies.

  We use CAD design system and our special use software to design works.

  We supply comprehensive and highly utilized vegetable oil plant with general design and also special designs, the first-class technology and service.

  We also can supply various levels of technology designs and services according to customer's requirements.

  We insist on the tenet of "quality first, customer superior", supplying customers with perfect technology consultation and high-quality after-sales services.

  We have advanced processing equipment and scientific management systems.

  Our products sell well in 28 provinces and cities in China and are exported to central Asian countries, like Uzbekistan, Kyrgyzstan, Kazakhstan and other more than 10 countries and areas, like Canada, Chile, Argentina, Ethiopia, Zambia, Nigeria, Russia and Turkey.

  We also have offices in Urumqi, Xinjiang, Uzbekistan and other countries and regions.



  Business scopes:

  1-2000tpd pre-treatment and pressing workshop,

  30-2000tpd cooking oil solvent extraction production line,

  1-600 tpd refining workshop,

  palm oil/palm kernel oil mill plant

  And we offer both production line and single machines.
