Palm Oil Extraction Machine Huatai Group - China

Palm oil extraction is a multi-step industrial process involving multiple key equipment, usually divided into pretreatment, pressing/extraction, refining and other stages.

The following is a complete description of the equipment composition and functions: 1 - Pretreatment equipment

sterilization Sterilization tank/cooking tank: Steam (120-130℃) is introduced to kill enzymes and sterilize to prevent oil hydrolysis.

Thresher: Separate the fruit bunches (FFB) into loose fruit particles.

Digester (cooking and mixing tank): Heat to soften the pulp and destroy the cell structure.

Hammer crusher: Crushes nuts (used for separating palm kernel oil).

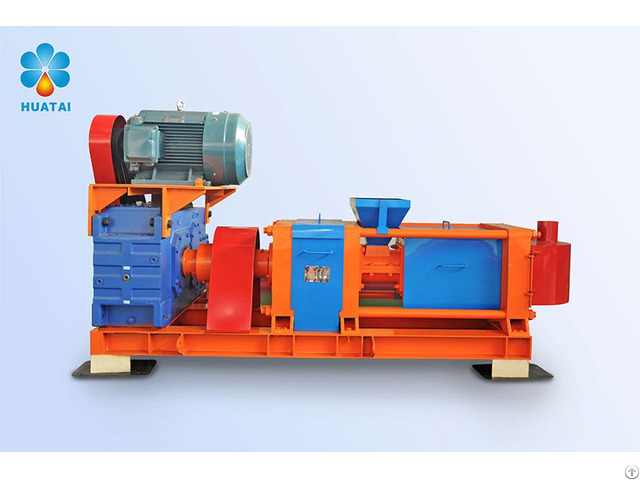

2 - Pressing/extraction equipment Mechanical pressing (applicable to palm pulp oil) Screw press: core equipment, squeezes out crude oil (oil content is about 20-22%) through high pressure.

Twin screw press: efficient extraction, residual oil rate can be reduced to 5-8%.

Solvent extraction (applicable to palm kernel oil) Extractor: Use n-hexane to dissolve oil.

Evaporation recovery system: Separate solvent and crude oil.

Separation equipment Centrifuge: Separate the oil, water and solid residue (fiber) after pressing.

Vibrating screen/sedimentation tank: Preliminary filtration of impurities.

3 - Refining equipment

Degumming and deacidification Acid refining tank: Add phosphoric acid to remove colloid.

Alkali refining tank: Neutralize free fatty acids (FFA).

Decolorization and deodorization White clay mixing tank: Add activated white clay to absorb pigments.

Deodorization tower: High temperature vacuum distillation to remove odor (240-260℃).

Fracturing equipment (production of oils with different melting points) Crystallization tank: Control the temperature to make the oil crystallize in stages.

Filter: Separate liquid oil (Olein) and solid fat (Stearin).

4 - Auxiliary system

Boiler and steam system: Provide heat energy.

Wastewater treatment equipment: Treat POME (palm oil mill wastewater).

Automation control system: PLC or DCS controls production parameters.

5 - By-product processing equipment

Nutshell separator: Recycle nutshell as fuel.

Fiber collection system: Used for boiler combustion or organic fertilizer.

Palm kernel processing line: Crushing and pressing palm kernels to obtain palm kernel oil.

Key points for equipment selection

Capacity matching: Small plants (1-5 tons/hour) mostly use screw pressing, and large plants (more than 30 tons) may combine extraction.

Energy efficiency: Steam consumption is the main cost, and heat recovery needs to be optimized.

Environmental requirements: It must meet wastewater discharge (such as COD, BOD treatment) and waste gas recovery standards.

The equipment complexity and degree of automation of different production scales (such as home workshops and industrial plants) vary greatly, but the core process is the same.

Henan Huatai Group can supply complete palm oil extraction equipment and small, medium, and large scale palm oil refineries on a turnkey projects.
