Industrial Big Ceiling Fan Manufacturer Bldc Motor - China

Company profile

Jiangsu Dawang Ventilation Machinery Co., Ltd is the first artificial intelligence industrial fans manufacturer in China.

We are specializing in design, R & D, production, marketing and maintenance services for new generation super large industrial ventilation fans.

DAWANGFANS adopts HVLS fan technology by American, which is the most directly and effective solution to ventilation and cooling for high volume.

With years of experience and strong technical R & D team, we always maintained progressiveness in HVLS industry! Product introduction

The wind generated by Dawang industrial fans provided for this project is similar to the natural breeze system, It's the wind speed that your skin feels best when it's cool .

The body can feel the temperature difference of 5-8 degrees, they can have a comfortable working environment in hot summer, improving production efficiency.

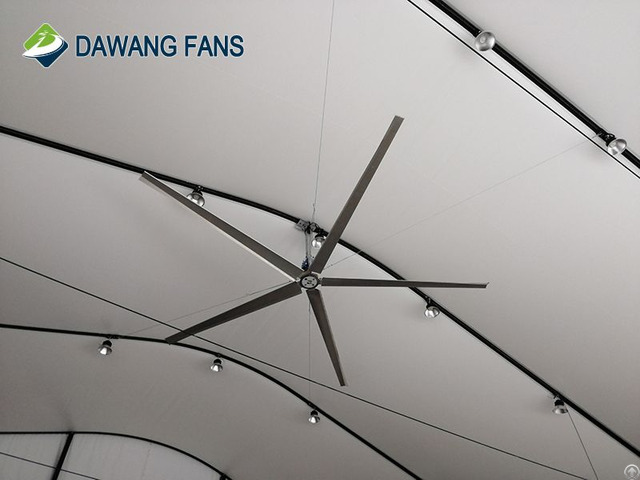

"Healthy-wind" series industrial large ceiling fans maximum diameter can reach 7.3m, hung on the rooftop.

Similar to regular small ceiling fans, but different from small ceiling fans, they can generate large air flow at low speed, form cross-ventilation through the whole building, to realize ventilation and cooling Configuration

1 - Motor: Custom manufacture motor, NORD German.

Low gear gap assembly process, gear grinding process, low noise, No vibration, free maintenance, more safety.

Get CCC, CE, UL certification

2 - Frequency Converter: Top Frequency Converter configuration, Schneider electric suit.

Safety protection module, automatically cut off when accident, protection grade IP55 - Passed UL, EMC, LVD, ROHS certification 3 - variable cross-section Streamlined blade: 1.5mm thick 5052 aero-grade 5 pieces aluminum plate are adopted, variable cross-section streamlined blades( equal string length theory of Aerodynamics).

Fan blade gradually narrows from root to tip and thins to the tail then widens, single blade weights is 7.7kg 4 - Wheel hub chassis: 7075 aero-grade aluminum material, after CNC machining, chassis precision tolerance controlled at 100μm to ensure balance.

5 - Main Frame: Q345 high strength steel structure laser cutting, after pickling and phosphating, coating thickness up to 80 ~ 100 microns, curing temperature is 190℃.

Surface hardness has no scratch by 2H pencil test, up to GB6739-86 standard

6 - mortise and tenon connection: Fully mortise and tenon connection, ensure the overall fan safety Jiangsu Dawang Ventilation Machinery Co., Ltd
