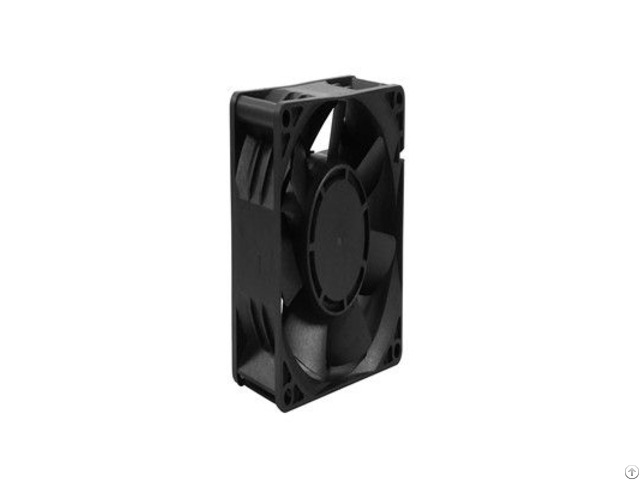

Dc 80x80x38mm Brushless Cooling Axial Booster Fan - China

General Specification:

Size: 80x80x38mm

Rated Voltage: 12V/24V/48V

Operation Voltage: 10.8~13.2V/21.6~2 6.4V/43.2~52.8V

Rated Current: 0.7~3.0A/0.5~1.5A /0.15~0.8A

Speed(RPM): 5000~11000/5000~11000/500 0~11000

Air flow(CFM): 55.03~122.8/ 55.03~122.8/ 55.03~122.8

Pressure(mmH2O): 13.96~55.48/13.96~55.48/1 3.96~55.48

Noise(dBA): 48.4~67.5/48.4~67.5/48.4~ 67.5

Bearing System: Ball

Frame & Impeller: Thermal Plastic, UL 94V-0 Lead wires: UL Type; (+): Red (-): Black

Operation Temperature: -10℃~70℃, 35%~85%RH Storage Temperature: -40℃~70℃, 35%~85%RH

Weight: 187g
