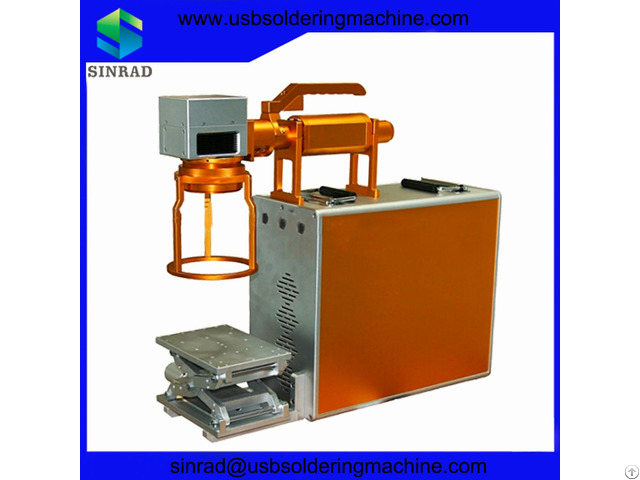

Print On Metal Portable Fiber Laser Marking Machine - China

Laser Marking (laser marking machine) apply to marking a permanent marker on variety of material surface.

Marking effect is exposed deep material by evaporation of surface material, therefore carve beautiful designs, trademarks and text.

laser marking machine is currently mainly used in some of the requirements for more sophisticated, higher accuracy of the occasion.

Used in electronic components, integrated circuits (IC), electrical appliances, mobile communications, hardware, tools, accessories, precision instruments, eyeglasses and clocks, jewelry, auto parts, plastic buttons, construction material, PVC pipe.

Parameters Name Parameters Datas

Average laser output power 20W(Continume or Pulse)

Laser wavelength 1064nm

Power adjustment range 10-100%

Repetition frequency 20-100KHz

Output beam quality ＜1.5M²

Marking Linear depth ≤1.2mm

Min.

Highlight spot 0.005mm

Min.

character size high 0.15mm

Repetition accuracy ±0.001mm

Max.

Linear marking speed 12000mm/s

Marking format Graphics, character, bar code, two-dimensional code, date, serial number

Software WINXP + support file formats of PLT, PCX, DXF, BMP etc; SHX and TTF fonts.

Standard marking area 100mm×100mm

Marking area option 50mm×50mm 150mm×150mm 200mm×200mm

Power consumed ≤160W

Electrical demand 220V±10%/50Hz/4A

Cooling Mode Air-cooled

Control interface USB

Laser module life ＞10000 hours

Laser IPG

Resonance mirror high speed

Usage environment Clean, no shaking
