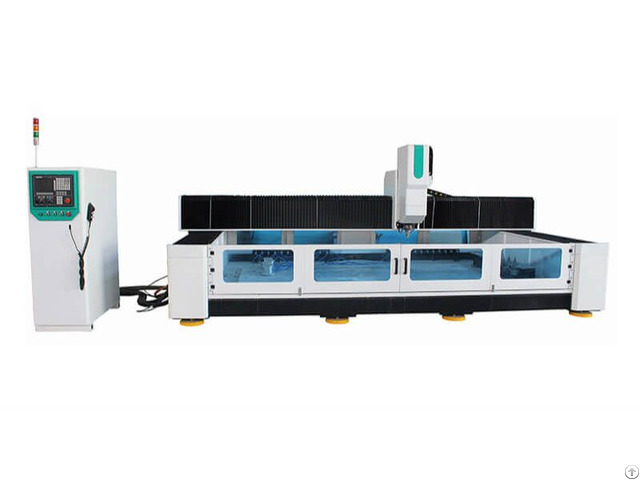

Marble Stone Cnc Cutting Engraving And Polishing Machine Center For Sale - China
price: 20000.00 Dollar US$
Marble Stone CNC Cutting Engraving and Polishing Machine Center for Sale Features: 1).
Strong machine structure welded by thick square tubes, excellent stability with no deformation.
High precision rack and pinion for X/Y axis and ball screw for Z axis, high precision and long lifetime.
2).
High-speed water cooling spindle and high-performance subdivision driver ensure to work stably for a long time.
3).
UncGraphics.
NX3.0, Mastercam9.0 other software, set the CAD / CAM as a whole, through digital analysis, design, the product was processed to support procedural pre / igs / scep / dxf / dwp and other documents.
4).
Vertical-type ATC system makes the whole process from the hole, cutting, shaping and polishing to a variety of milling processes go, the full realization of a high degree of automation.
6).
Break-point memory and power off continuous engraving functions;.
7).
different kind of processing works can be done, such as polishing for backsplash, former anomalous edge, cutting and polishing water tap hole through the automatic tools changing.
Technical parameters
Brand Jeesun
Model JS-
Working Area 2500*1300*500mm
Running speed 0-8000rmp/min
Feeding speed 1-10000mm/min
Positioning Accuracy 0.05mm
Re-positioning accuracy 0.02mm
Table type Steel board+Aluminum board
Spindle Power 5.5KW Servo Customized Spindle
Spindle Speed 0-8000rpm/min
Maximum processing thickness 350mm
Control system NC-studio control system
Software UCANCAM, JDpaint software
Command G Code (plt, mmg, uoo, bmp)
Driving Motor servo motor
Transmission X, Y Axis High Precision Rack Gears, Z Axis Ball Screw
Guide rail Taiwan Linear Square Guide Rail 30mm
Voltage AC380V/3phase, 50HZ
Company Contact:
- Posted By: Jinan Jeesun CNC Machinery Co., Ltd
- Phone: +86-13046001147
- Address: Licheng District, Jinan , Shandong , China
- Email:
- Website: https://www.jeesuncnc.com
Published date: March 13, 2019
- Business Description: JeesunCNC Machinery was founded in 2010, which is a professional supplier specializing in R&D, manufacture and sales of different CNC machines, including fiber laser cutting machine, metal laser cutter, CNC plasma cutter, CNC wood router, stone cnc machine, 5 axis cnc router, etc.
It is our pursuit to provide high quality products, competitive prices and excellent services to customers all over the world.
