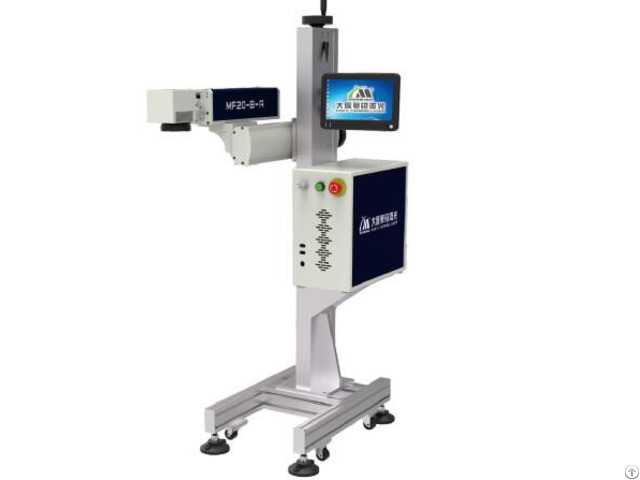

Laser Marking Machine For Metal - China

This kind of laser marking machine for metal is specially designed for customers who need to mark metal material such as cast iron, stainless steel, magal, zinc alloy, cooper, nickelage, galvanization, aluminium oxide and so on .

Applicable materials

cast iron, stainless steel, magal, zinc alloy, cooper, nickelage, galvanization, aluminium oxide and so on.

Applicable Industry

This laser marking machine for metal is suitable for packaging industry and is especially fit for marking beverage bottle and capsule aluminum foil .

scb2018ym

Features of laser marking machine for metal

a.

High integration fiber laser with good beam quality and stable output light power, which will improve the working efficiency greatly .

b.

Less space demand by compact structure and small size c.

High anti-reflection and could work without shadows and imaginary line even on high reflective materials like aluminum, copper, gold, silver etc.

d.

Excellent performance with high-speed digital scanning galvanometer with characteristics of small size, high speed, stable signal transmission.

e.

More flexible to fit for customer’s production line by modular design and separated lifter and power box .

f.

The laser marking machine for metal is easy to operate with embedded operation system

g.

Touch screen with friendly HMI which is very convenient to operate

h.

The laser marking machine for metal can meet different industries requirement .

it support mark date code, time code and serial number etc Speciafication

Laser wavelength : 1.06um Light spot quality : <1.4㎡

Laser Power : 20W Impulse frequency : 20-80KHz

Cooling method : Air cooling Focal distance : 163(100mm/254mm) Working distance: 188(12mm/280mm) Front and back direction : : 0-200m

Minimum line-width : 0.02mm Minimum character : 0.2mm

Marking Speed : 0-7000 mm/s Graphic format supported : bmp, jpg, ai, dxf, plt etc

Voltage: AC22V±10% Frequency : 50/60 Hz

Laser case weight : 25kg(approximately) Lifter weight : 50kg (approximately)

Adjustable height direction(side) : 400-1500mm

Laser case dimension : 450mmx210mmx 380mm Lifter dimension 730mmx 450mmx 1350mm

Adjutable height direction (upper surface): 550-1200 mm

Marking area : 110mmx110mm(optical: 70mm x70mm/175mmx175mm)

Working environment: Clean, less dust ; Temp : 10-30℃；Humidity : 5-85
